Implementing Data Warehouse Slowly Changing Dimensions (SCD) on Lakehouse Using Streams, Pipes, and SQL Tasks

This article addresses the problem: customer, product, and other data in dimension tables changes over time. How do you correctly handle these changes in a data warehouse while preserving historical records?

After completing this guide, you will have a runnable SCD Type 1 / Type 2 implementation based on Singdata Lakehouse's Table Stream + MERGE INTO, capable of automatically capturing dimension changes and writing them to history tables.

Prerequisites: Understanding of basic SQL operations, a Singdata Lakehouse account, and AK information for accessing Alibaba Cloud OSS.

About SCD

Slowly Changing Dimensions (SCD) is a key concept in data warehouse design, used for managing how data in dimension tables is handled as it changes over time. Dimension tables contain descriptive data, such as customer information and product information, which may change over time. SCD provides methods for handling and recording these changes so that both historical and current data in the data warehouse remain consistent and accurate.

SCD is typically divided into several types:

SCD Type 1

SCD Type 1 handles changes by overwriting old data. This means that when dimension data changes, the old data is overwritten by the new data, so no historical records are preserved. This method is simple and fast, but historical data is lost.

Example: Suppose a customer's address changes. SCD Type 1 will directly update the customer's address field, and the old address information will be overwritten by the new address.

SCD Type 2

SCD Type 2 handles changes by creating new rows to preserve historical records. This method adds a new record to the dimension table and updates it with the new data, while retaining the old data row, and may use effective date columns or version columns to track different versions of the data.

Example: When a customer's address changes, SCD Type 2 inserts a new record into the dimension table containing the new address, and may add an effective date range to indicate the validity period of that address.

SCD Type 3

SCD Type 3 handles changes by adding additional columns to the table to preserve limited history. This method adds a new column to the dimension table to store the old data. When a change occurs, the old data is moved to the new column, and the new data overwrites the original position.

Example: If a customer's address changes, SCD Type 3 adds an "old address" column to the table, stores the old address in that column, and stores the new address in the original column.

Comparison of the Three Types

SCD Type	Handling Method	Preserves History	Storage Overhead	Suitable Scenarios
Type 1	Directly overwrite old values	No	Low	Data corrections, no historical traceability needed
Type 2	Add new rows for changes; mark old rows as invalid	Yes (complete)	High	Dimensions requiring full history (customer addresses, product prices)
Type 3	Add "old value" column to original row	Yes (previous version only)	Medium	Only need to compare current value with previous version

This guide implements Type 1 and Type 2; Type 3 is outside the scope of this article.

What You Need

• Singdata Lakehouse account
• GitHub repository for this guide
• AK information for accessing Alibaba Cloud OSS

Introduction to SCD Implementation on Lakehouse

A modern approach to implementing Slowly Changing Dimensions (SCD) in the Lakehouse, leveraging automated data pipelines and native Lakehouse features for efficient change tracking and historical data management.

Pipeline Overview

An end-to-end data pipeline that automatically captures and processes data changes:

1. Data Source (Jupyter calling Faker to generate test data) -> Use Python to create data simulating real-world events.

2. Zettapark PUT -> Use Zettapark to pull and load data onto the data lake Volume.

3. Data Lake Volume -> Data lake storage based on Alibaba Cloud OSS.

4. Lakehouse Pipe Captures data lake file changes -> Lakehouse Pipe efficiently streams data from the data lake Volume into the Lakehouse.

5. Lakehouse Table Stream Captures table data changes -> Captures changed data in the base table for incremental consumption.

6. SQL Tasks For SCD Processing -> Develop SQL tasks to implement SCD processing logic, with task scheduling through Singdata Lakehouse Studio.

7. Lakehouse Data Management: Lakehouse manages data through three tables:

   • customer_raw: Stores raw ingested data.
   • customer: Reflects the latest updates from the streaming pipeline.
   • customer_history: Retains records of all updates for analysis and auditing change history.

Key Components

Data Generation

• Tools Used: Python
• Python scripts dynamically generate simulated customer data to simulate real-time data sources.

Data Ingestion Layer

• Data Lake Volume: Storage area for source files; Lakehouse's data lake storage. This case uses Alibaba Cloud OSS. Achieve unified management with tables by creating an External Volume.

• Zettapark: PUTs the generated simulated data onto the data lake Volume.

• Pipe: Lakehouse's built-in real-time data ingestion service. Use Pipe for real-time streaming:

  • Automatically detects new files in the data lake Volume
  • Loads data into the staging table customer_raw without manual intervention

Change Detection Layer

• Lakehouse Table Stream:

  • Captures INSERT, UPDATE, DELETE operations
  • Maintains change tracking metadata
  • Capable of efficiently handling incremental changes
  • Stores change data detected from customer into customer_table_changes

Processing Layer

• Lakehouse SQL Tasks:

  • Scheduled jobs for SCD processing
  • Handles Type 1 (overwrite) and Type 2 (history) changes
  • Maintains referential integrity
  • Tasks:
    • Insert new or updated records into the customer table (SCD Type 1)
    • Record updates to the customer_history table (SCD Type 2) to preserve audit trail

Storage Layer

• Staging Table: Temporary storage area for raw data

• Dimension Tables: Final tables with historical tracking

  • Include effective dates
  • Maintain current and historical records
  • Support point-in-time analysis

Application Scenarios

• Customer dimension management
• Product catalog versioning
• Employee data tracking
• Any dimension requiring historical change tracking

Technology Stack

Required Components:

• Singdata Lakehouse
• Alibaba Cloud OSS (Data Lake Storage)
• Jupyter Notebook (for test data generation and PUTing files to the data lake Volume), or another Python environment

Implementation Steps

Task Development

Navigate to Development -> Tasks in Lakehouse Studio.

Click "+" to create the following directory:

• 01_DEMO_SCD_In_Lakehouse

Click "+" to create the following SQL tasks:

• 01_setup_env
• 10_table_creation_for_data_storage
• 11_stream_creation_for_change_detect
• 12_volume_creation_for_datalake
• 13_pipe_creation_for_data_ingestion
• 14_scd_type_1
• 15_scd_type_2_1
• 16_scd_type_2_2
• 20_clean_env

Copy the following code into the corresponding tasks. You can also download the files from GitHub and copy the content into the corresponding tasks.

Lakehouse Environment Setup

SQL Task: 01_setup_env

-- Create required virtual cluster and schemas -- SCD virtual cluster CREATE VCLUSTER IF NOT EXISTS SCD_VC VCLUSTER_SIZE = XSMALL VCLUSTER_TYPE = ANALYTICS AUTO_SUSPEND_IN_SECOND = 60 AUTO_RESUME = TRUE COMMENT 'SCD VCLUSTER for test'; -- Use our VCLUSTER USE VCLUSTER SCD_VC; -- Create and Use SCHEMA CREATE SCHEMA IF NOT EXISTS SCD_SCH; USE SCHEMA SCD_SCH;

Create Tables

SQL Task: 10_table_creation_for_data_storage

USE VCLUSTER SCD_VC; USE SCHEMA SCD_SCH; create table if not exists customer ( customer_id string, first_name varchar, last_name varchar, email varchar, street varchar, city varchar, state varchar, country varchar, update_timestamp timestamp_ntz default current_timestamp()); create table if not exists customer_history ( customer_id string, first_name varchar, last_name varchar, email varchar, street varchar, city varchar, state varchar, country varchar, start_time timestamp_ntz default current_timestamp(), end_time timestamp_ntz default current_timestamp(), is_current boolean ); create table if not exists customer_raw ( customer_id string, first_name varchar, last_name varchar, email varchar, street varchar, city varchar, state varchar, country varchar);

After execution: the three tables customer, customer_history, and customer_raw are created. Confirm with SHOW TABLES.

Create Stream

SQL Task: 11_stream_creation_for_change_detect

USE VCLUSTER SCD_VC; USE SCHEMA SCD_SCH; create table stream if not exists customer_table_changes on table customer WITH PROPERTIES('TABLE_STREAM_MODE' = 'STANDARD');

After execution: Stream customer_table_changes begins listening for INSERT / UPDATE / DELETE changes on the customer table.

Create Data Lake Volume

SQL Task: 12_volume_creation_for_datalake

Creating a Volume requires a Connection to Alibaba Cloud OSS. Refer to Create Connection.

--external data lake --Create data lake Connection, connection to the data lake CREATE STORAGE CONNECTION if not exists hz_ingestion_demo TYPE oss ENDPOINT = 'oss-cn-hangzhou-internal.aliyuncs.com' access_id = 'Please enter your access_id' access_key = 'Please enter your access_key' comments = 'hangzhou oss private endpoint for ingest demo'

USE VCLUSTER SCD_VC; USE SCHEMA SCD_SCH; --Create Volume, the location for data lake file storage CREATE EXTERNAL VOLUME if not exists scd_demo LOCATION 'oss://yourbucketname/scd_demo' USING connection hz_ingestion_demo -- storage Connection DIRECTORY = ( enable = TRUE ) recursive = TRUE; --Sync data lake Volume directory to Lakehouse ALTER volume scd_demo refresh; --View files on the Singdata Lakehouse data lake Volume SELECT * from directory(volume scd_demo); show volumes;

Create Pipe

SQL Task: 13_pipe_creation_for_data_ingestion

USE VCLUSTER SCD_VC; USE SCHEMA SCD_SCH; create pipe volume_pipe_cdc_demo VIRTUAL_CLUSTER = 'scd_vc' -- Use file scanning mode to fetch the latest files INGEST_MODE = 'LIST_PURGE' as copy into customer_raw from volume scd_demo(customer_id string, first_name varchar, last_name varchar, email varchar, street varchar, city varchar, state varchar, country varchar) using csv OPTIONS( 'header'='true' ) -- Must add purge parameter to delete data after successful import purge=true ; show pipes; DESC PIPE volume_pipe_cdc_demo;

SCD Type 1

SQL Task: 14_scd_type_1

USE VCLUSTER SCD_VC; USE SCHEMA SCD_SCH; MERGE INTO customer AS c USING customer_raw AS cr ON c.customer_id = cr.customer_id WHEN MATCHED AND (c.first_name <> cr.first_name OR c.last_name <> cr.last_name OR c.email <> cr.email OR c.street <> cr.street OR c.city <> cr.city OR c.state <> cr.state OR c.country <> cr.country) THEN UPDATE SET c.first_name = cr.first_name, c.last_name = cr.last_name, c.email = cr.email, c.street = cr.street, c.city = cr.city, c.state = cr.state, c.country = cr.country, c.update_timestamp = current_timestamp() WHEN NOT MATCHED THEN INSERT (customer_id, first_name, last_name, email, street, city, state, country) VALUES (cr.customer_id, cr.first_name, cr.last_name, cr.email, cr.street, cr.city, cr.state, cr.country); select count(*) from customer;

After execution: existing records in the customer table are overwritten with updates, new records are inserted; select count(*) returns the current total row count.

SCD Type 2-1

SQL Task: 15_scd_type_2_1

USE VCLUSTER SCD_VC; USE SCHEMA SCD_SCH; -- Create view v_customer_change_data CREATE VIEW IF NOT EXISTS v_customer_change_data AS -- This subquery handles data being inserted into the customer table -- Data inserted into the customer table generates a new insert record in the customer_HISTORY table SELECT CUSTOMER_ID, FIRST_NAME, LAST_NAME, EMAIL, STREET, CITY, STATE, COUNTRY, start_time, end_time, is_current, 'I' AS dml_type FROM ( SELECT CUSTOMER_ID, FIRST_NAME, LAST_NAME, EMAIL, STREET, CITY, STATE, COUNTRY, update_timestamp AS start_time, LAG(update_timestamp) OVER (PARTITION BY customer_id ORDER BY update_timestamp DESC) AS end_time_raw, CASE WHEN end_time_raw IS NULL THEN '9999-12-31' ELSE end_time_raw END AS end_time, CASE WHEN end_time_raw IS NULL THEN TRUE ELSE FALSE END AS is_current FROM ( SELECT CUSTOMER_ID, FIRST_NAME, LAST_NAME, EMAIL, STREET, CITY, STATE, COUNTRY, UPDATE_TIMESTAMP FROM customer_table_changes WHERE __change_type = 'INSERT' ) ) UNION -- This subquery handles data being updated in the customer table -- Data updated in the customer table generates one update record and one insert record in the customer_HISTORY table -- The subquery below generates two records, each with a different dml_type SELECT CUSTOMER_ID, FIRST_NAME, LAST_NAME, EMAIL, STREET, CITY, STATE, COUNTRY, start_time, end_time, is_current, dml_type FROM ( SELECT CUSTOMER_ID, FIRST_NAME, LAST_NAME, EMAIL, STREET, CITY, STATE, COUNTRY, update_timestamp AS start_time, LAG(update_timestamp) OVER (PARTITION BY customer_id ORDER BY update_timestamp DESC) AS end_time_raw, CASE WHEN end_time_raw IS NULL THEN '9999-12-31' ELSE end_time_raw END AS end_time, CASE WHEN end_time_raw IS NULL THEN TRUE ELSE FALSE END AS is_current, dml_type FROM ( -- Identify data to be inserted into the customer_history table SELECT CUSTOMER_ID, FIRST_NAME, LAST_NAME, EMAIL, STREET, CITY, STATE, COUNTRY, update_timestamp, 'I' AS dml_type FROM customer_table_changes WHERE __change_type = 'INSERT' UNION -- Identify data in the customer_HISTORY table that needs to be updated SELECT CUSTOMER_ID, null AS FIRST_NAME, null AS LAST_NAME, null AS EMAIL, null AS STREET, null AS CITY, null AS STATE, null AS COUNTRY, start_time, 'U' AS dml_type FROM customer_history WHERE customer_id IN ( SELECT DISTINCT customer_id FROM customer_table_changes WHERE __change_type = 'DELETE' ) AND is_current = TRUE ) ) UNION -- This subquery handles data being deleted from the customer table -- Data deleted from the customer table generates an update record in the customer_HISTORY table SELECT ctc.CUSTOMER_ID, null AS FIRST_NAME, null AS LAST_NAME, null AS EMAIL, null AS STREET, null AS CITY, null AS STATE, null AS COUNTRY, ch.start_time, current_timestamp() AS end_time, NULL AS is_current, 'D' AS dml_type FROM customer_history ch INNER JOIN customer_table_changes ctc ON ch.customer_id = ctc.customer_id WHERE ctc.__change_type = 'DELETE' AND ch.is_current = TRUE;

SCD Type 2-2

SQL Task: 16_scd_type_2_2

USE VCLUSTER SCD_VC; USE SCHEMA SCD_SCH; merge into customer_history ch -- Target table; merges changes from NATION into this table using v_customer_change_data ccd -- v_customer_change_data is a view containing logic for inserts/updates into the customer_history table on ch.CUSTOMER_ID = ccd.CUSTOMER_ID -- CUSTOMER_ID and start_time determine whether a unique record exists in the customer_history table and ch.start_time = ccd.start_time when matched and ccd.dml_type = 'U' then update -- Indicates the record has been updated and is no longer current; needs end_time marked set ch.end_time = ccd.end_time, ch.is_current = FALSE when matched and ccd.dml_type = 'D' then update -- Deletion is effectively a logical delete. The record is marked and no new version is inserted set ch.end_time = ccd.end_time, ch.is_current = FALSE when not matched and ccd.dml_type = 'I' then insert -- Inserting a new CUSTOMER_ID or updating an existing CUSTOMER_ID both produce an insert operation (CUSTOMER_ID, FIRST_NAME, LAST_NAME, EMAIL, STREET, CITY, STATE, COUNTRY, start_time, end_time, is_current) values (ccd.CUSTOMER_ID, ccd.FIRST_NAME, ccd.LAST_NAME, ccd.EMAIL, ccd.STREET, ccd.CITY, ccd.STATE, ccd.COUNTRY, ccd.start_time, ccd.end_time, ccd.is_current);

After execution: new or updated historical records are added to the customer_history table; old version rows have is_current set to FALSE; new version rows have end_time as 9999-12-31 and is_current as TRUE.

Building the Environment

Run the developed tasks to build the Lakehouse runtime environment. Navigate to Development -> Tasks, open the following tasks, and run them one by one:

• 01_setup_env
• 10_table_creation_for_data_storage
• 11_stream_creation_for_change_detect
• 12_volume_creation_for_datalake
• 13_pipe_creation_for_data_ingestion
• 15_scd_type_2_1

Task Scheduling and Commit

Schedule the developed SCD tasks to execute once per minute. Navigate to Development -> Tasks, open the following tasks, and configure scheduling for each:

• 14_scd_type_1
• 16_scd_type_2_2

Commit Tasks

After configuring the schedule, click "Commit." The tasks will run on a one-minute cycle, updating the data in the target tables.

Generate Test Data

Generate Test Data and PUT to Data Lake Volume

#!pip install faker from faker import Faker import csv import uuid import random from decimal import Decimal from datetime import datetime from clickzetta.zettapark.session import Session import json RECORD_COUNT = 10000 fake = Faker()

current_time = datetime.now().strftime("%Y%m%d%H%M%S") print(current_time)

file_path = f'FakeDataset/customer_{current_time}.csv'

def create_csv_file(): with open(file_path, 'w', newline='') as csvfile: fieldnames = ["customer_id","first_name","last_name","email","street", "city","state","country" ] writer = csv.DictWriter(csvfile, fieldnames=fieldnames) writer.writeheader() for i in range(RECORD_COUNT): #print(i) writer.writerow( { "customer_id": str(uuid.uuid4()), 'first_name': fake.first_name(), 'last_name': fake.last_name(), 'email': fake.email(), 'street': fake.street_address(), 'city': fake.city(), 'state': fake.state(), 'country': fake.country() } )

def put_file_into_volume(): # Read parameters from configuration file with open('security/config-uat.json', 'r') as config_file: config = json.load(config_file) # Create session session = Session.builder.configs(config).create() session.file.put(file_path,"volume://scd_demo/") session.sql("show volume directory scd_demo").show() session.close()

if __name__ == '__main__': create_csv_file() put_file_into_volume()

• Executing the above code PUTs a new file to the Volume. The Pipe automatically detects the new file and writes its data into the customer_raw table.

• The 14_scd_type_1 task, configured with periodic scheduling, performs SCD Type 1 computation every minute and merges the results into the customer table.

• Table Stream automatically detects changes in the customer table data and stores the changed data in customer_table_changes.

• The 16_scd_type_2_2 task, configured with periodic scheduling, performs SCD Type 2 computation every minute and merges the results into the customer_history table.

Monitoring and Maintenance

Pipe Monitoring

• Use the SHOW PIPES command to view the list of PIPE objects

SHOW PIPES;

• Use the DESC PIPE command to view detailed information for a specified PIPE object

DESC PIPE volume_pipe_cdc_demo;

• View Pipe COPY job executions

Filter by query_tag in the job history. All Pipe COPY job executions are tagged in query_tag with the format: pipe.workspace_name.schema_name.pipe_name

In this guide, workspace_name is ql_ws, schema_name is SCD_SCH, and pipe name is volume_pipe_cdc_demo, so the query_tag is:

pipe.ql_ws.scd_sch.volume_pipe_cdc_demo

Navigate to Compute -> Job History:

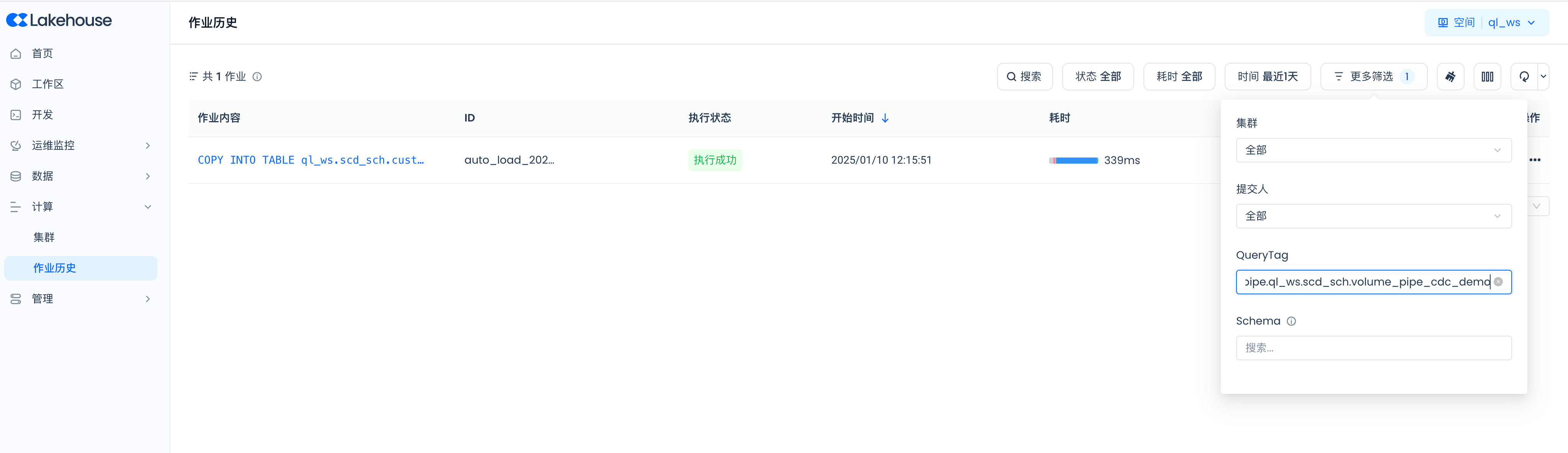

Click "More Filters" and enter "pipe.ql_ws.scd_sch.volume_pipe_cdc_demo" in the QueryTag field to filter:

Scheduled Tasks

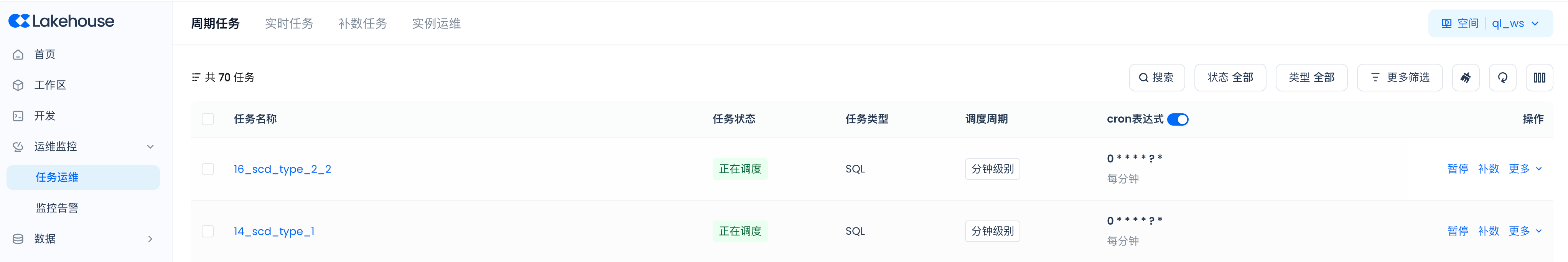

Navigate to Operations Monitoring -> Task Operations -> Scheduled Tasks:

View Task Instances:
