Create Tencent Cloud Storage Connection

The goal of this step is to allow the Lakehouse cluster to access the object storage COS on Tencent. To achieve this goal, you can use two authentication methods provided by Tencent Cloud Access Management: Access Key and Role Authorization.

Based on Access Key


CREATE STORAGE CONNECTION my_conn
  TYPE COS
  ACCESS_KEY = '<access_key>'
  SECRET_KEY = '<secret_key>'
  REGION = 'ap-shanghai'
  APP_ID = '1310000503';

Parameters:

TYPE: This is the object storage type. For Tencent Cloud, fill in COS (case insensitive).
ACCESS_KEY / SECRET_KEY: These are the access keys for Tencent Cloud. Refer to Access Keys for how to obtain them.
REGION: This refers to the region where the Tencent Cloud Object Storage (COS) data center is located. When Singdata Lakehouse accesses Tencent Cloud COS within the same region, the COS service will automatically route to internal network access. For specific values, please refer to the Tencent Cloud documentation: Regions and Access Domains.
APP_ID: The naming of Tencent Cloud storage buckets consists of the bucket name (BucketName) and APPID, connected by a hyphen "-". For example, examplebucket-1310000503, where examplebucket is user-defined, and 1310000503 is a system-generated numeric string (APPID).

Role-Based Authorization

STEP1: Create Data Permission Policy (LakehouseAccess):

Log in to Tencent Cloud and go to the Access Management product console.
In the Access Management page, navigate to Policies on the left sidebar, then select Create Custom Policy -> Create by Policy Generator -> Visual Policy Generator.

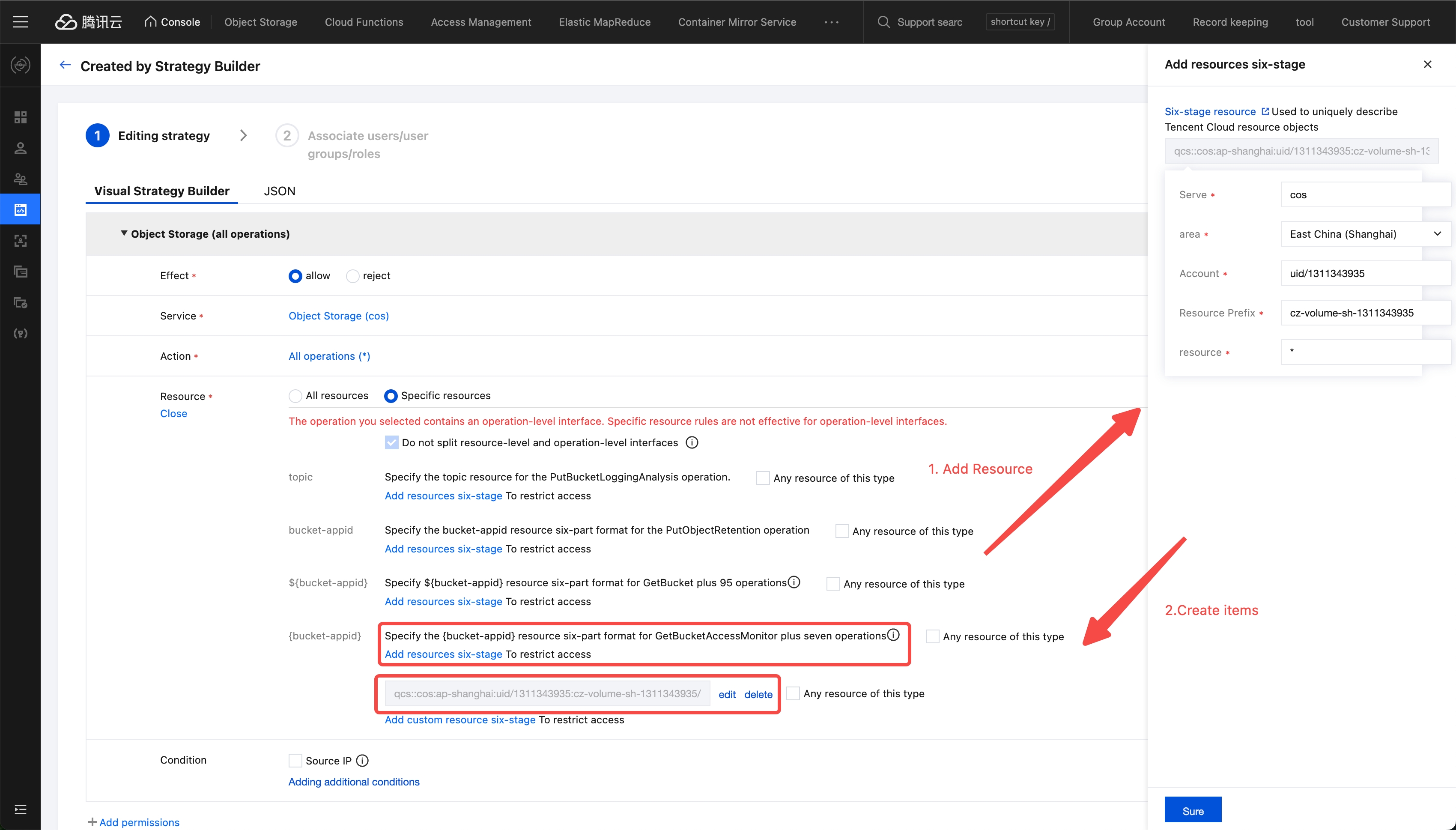

In the Visual Policy Generator tab: Service: Select Object Storage (cos); Action: Select All Actions (you can make more granular selections based on actual needs); Resource: Select All Resources or Specific Resources as needed. In this example, select specific resources for the Shanghai region cz-volume-sh-1311343935
Preview
Click Next, fill in the Policy Name as LakehouseAccess and description, then click Finish.

STEP2: Create Role on Client Side (LakehouseRole)

Go to the Tencent Cloud Access Management product console.
In the Access Management page, navigate to Roles on the left sidebar -> Create Role -> Tencent Cloud Account, select Other Main Account, and enter 100029595716 (Singdata's Tencent Cloud main account) in the Account ID field. Keep other options as default, then click Next.
In the Configure Role Policy configuration, authorize the newly created LakehouseAccess custom policy to the current role. Click Next, fill in the Role Name as LakehouseRole to complete the creation.
After successful creation, go to the details page of the role LakehouseRole in the role list to obtain the RoleARN information: qcs::cam::uin/1000*******:roleName/LakehouseRole.

STEP3: Create Connection on Lakehouse Side

Execute the following command in Studio or Lakehouse JDBC client:


CREATE STORAGE CONNECTION my_tx_connection_arn
   TYPE cos
   REGION = 'ap-shanghai'
   ROLE_ARN = 'qcs::cam::uin/1000********:roleName/LakehouseRole'
   APP_ID = '131****35';

Note: To prevent the ROLE_ARN from being obtained by third parties for unauthorized data access, you can use EXTERNAL ID as an additional verification layer to ensure that access is only allowed when the request contains the preset EXTERNAL ID. This means that even if a third party knows some other access information (such as the role ARN), they cannot access the resources without the correct EXTERNAL ID.

During the process of creating a storage connection, Lakehouse will generate this EXTERNAL ID, which can be configured into the role verification of the COS account to achieve access control:

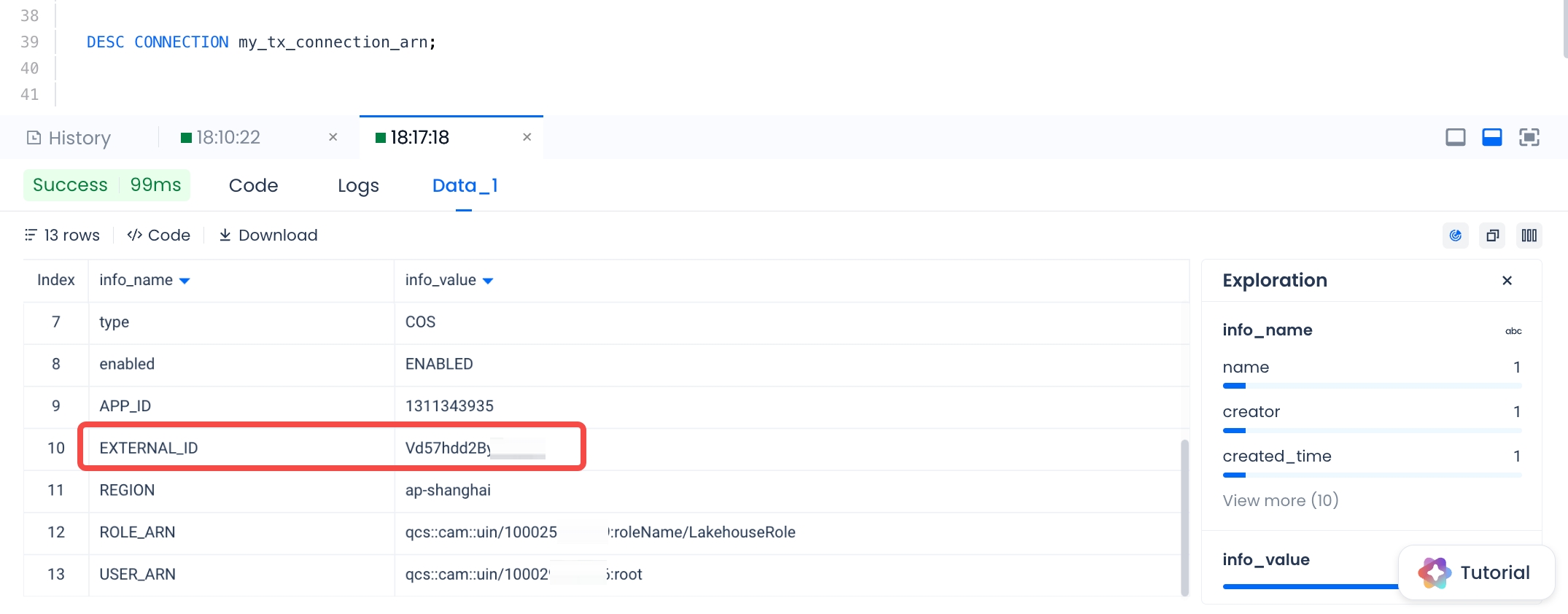

-- View EXTERNAL ID
DESC CONNECTION my_tx_connection_arn ;

Client Side: Enter the Tencent Cloud Access Management console, Role -> LakehouseRole -> Role Carrier -> Manage Carrier, select Add Account -> select Current Main Account, and fill in the main account ID: 100029595716 (Singdata's Tencent Cloud main account), and check Enable Verification, enter the EXTERNAL_ID from the previous DESC result, click Confirm -> Update
