Alibaba Cloud BYOS Configuration

This guide will help you configure BYOS (Private Storage) on Alibaba Cloud Object Storage Service (OSS), enabling the Singdata Lakehouse to use your OSS bucket as a data storage location.

Prerequisites

• Have an Alibaba Cloud account with OSS service enabled
• Know the cloud platform and region of your Singdata Lakehouse instance
• Have administrative permissions for OSS buckets

Step 1: Prepare an OSS Bucket

Create a New Bucket (Recommended)

If you choose to create a new bucket dedicated to the Singdata Lakehouse:

1. Log in to the Alibaba Cloud OSS Console

   Visit: https://oss.console.aliyun.com

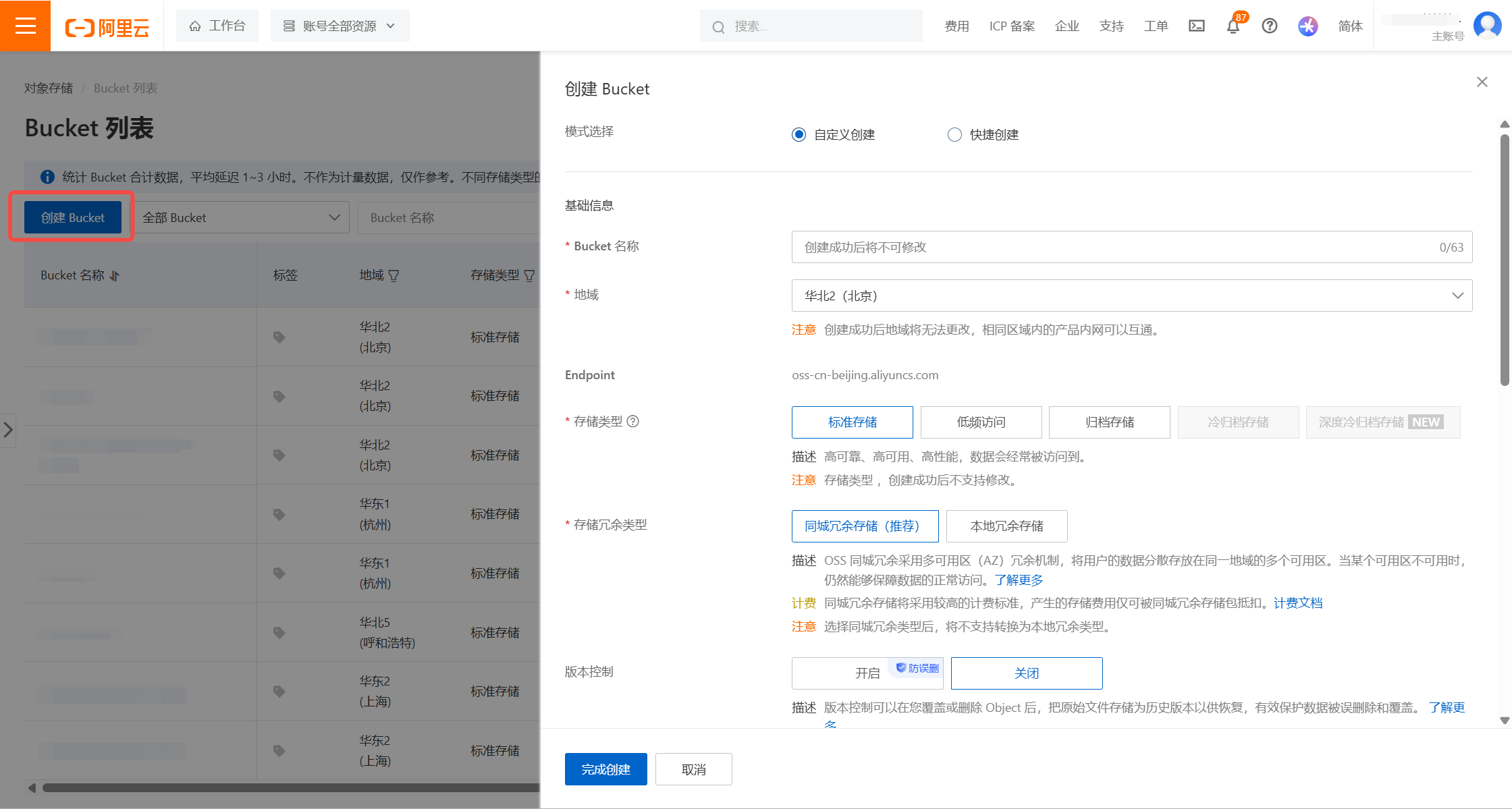

2. Click "Create Bucket"

Configure Bucket Basic Information

Item	Setting	Description
Bucket Name	Custom (e.g., my-company-lakehouse)	Globally unique; recommend including a usage identifier.
Region	Same as the Lakehouse instance	:warning: Critical Requirement: Must be the same region as the Singdata Lakehouse instance.
Storage Class	Standard	Avoid Infrequent Access or Archive storage; frequent reads will incur excessive retrieval fees.
Storage Redundancy	Locally Redundant Storage (LRS)	You may choose Zone-Redundant Storage (ZRS) based on your requirements.
Read/Write Access	Private	Ensure data security.
Server-Side Encryption	None	The Lakehouse manages encryption on its own; global encryption may affect performance.
Versioning	Disabled	Avoid additional costs.
Scheduled Backup	Disabled	Backups in object storage lack metadata, so separately backed-up data is unreadable. If backups are needed, use the Lakehouse's Time Travel feature.

---

Use an Existing Bucket

If you choose to use an existing bucket:

Verify Region Configuration

The bucket must be in the same Region as the Singdata Lakehouse instance. For example:

• Lakehouse instance in: Alibaba Cloud China East 2 (Shanghai)
• OSS Bucket must be in: China East 2 (Shanghai)

Your service instance's "Cloud Provider and Region" information can be found on the service instance homepage:

Choose a Storage Path

You can choose one of the following:

Option 1: Use the Entire Bucket (Recommended)

Applicable scenario: Bucket dedicated to the Lakehouse

Option 2: Use a Specific Directory Under the Bucket

Applicable scenario: Need to isolate data for different purposes within the same bucket

---

Data Security Warning:

1. Ensure the selected path is not shared with other business systems.
2. The Singdata Lakehouse will perform read, write, and delete operations on files under this path.
3. Sharing paths may lead to:
   • Data being accidentally deleted or overwritten.
   • Impact on the normal operation of other business systems.
   • Data consistency issues.

Recommendation: Create a dedicated bucket or use a dedicated directory for the Lakehouse.

Record Required Information

Please record the following information, which will be needed for subsequent configuration:

• Bucket Name
• Bucket Region
• Storage Path (if using a subdirectory)
• Your Alibaba Cloud Root Account ID

How to view the root account ID:

1. Log in to the Alibaba Cloud console
2. Click the avatar in the upper right corner
3. In "Account Information", view the "Account ID"

Step 2: Configure Bucket Access Policy

1. Go to the Bucket Management Page

• Find your bucket in the OSS console
• Click the bucket name to enter the details page

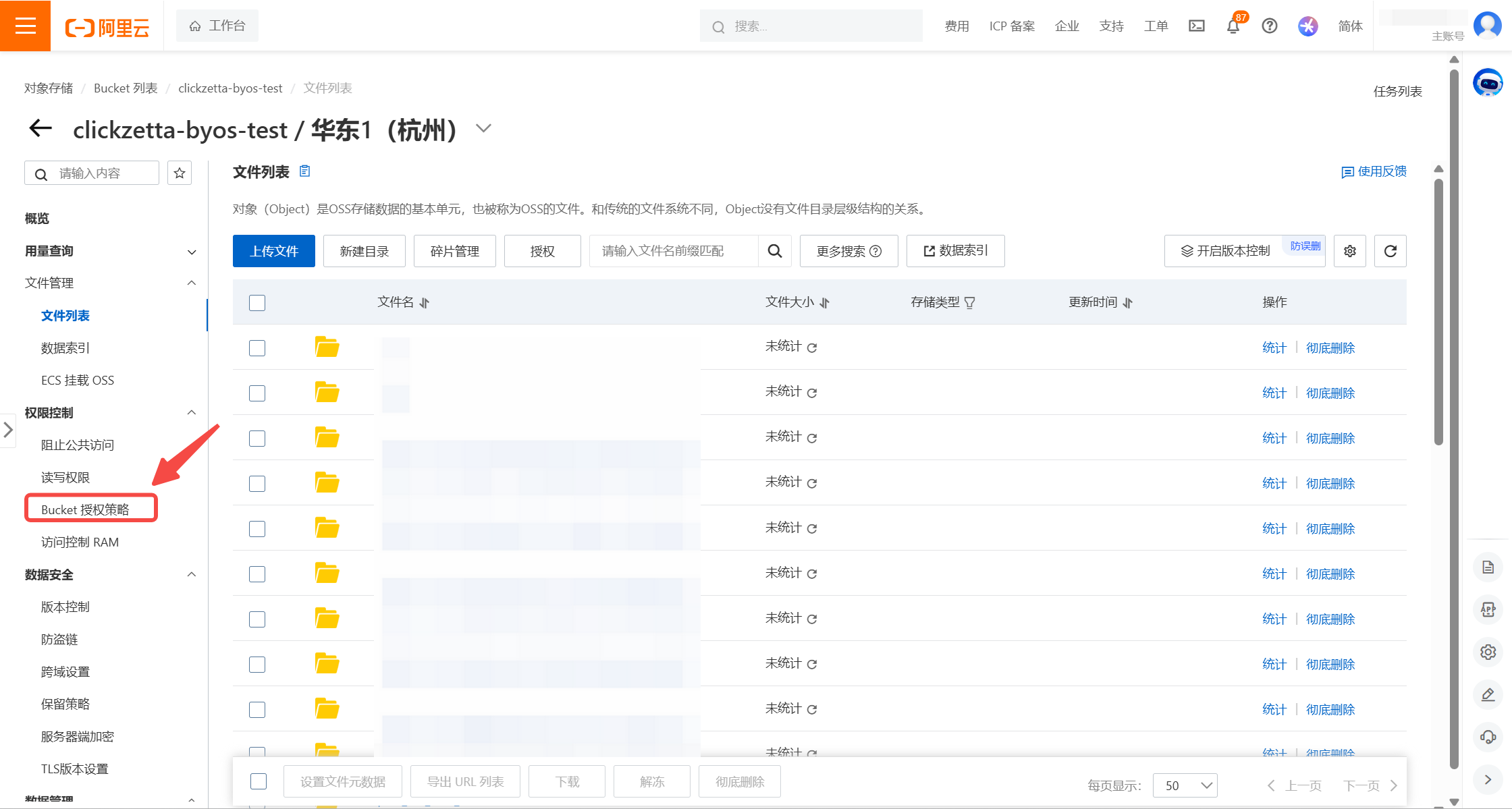

2. Go to the Access Control Page

• Click "Access Control" -> "Bucket Authorization Policy" in the left menu.
• Click "Add Authorization".

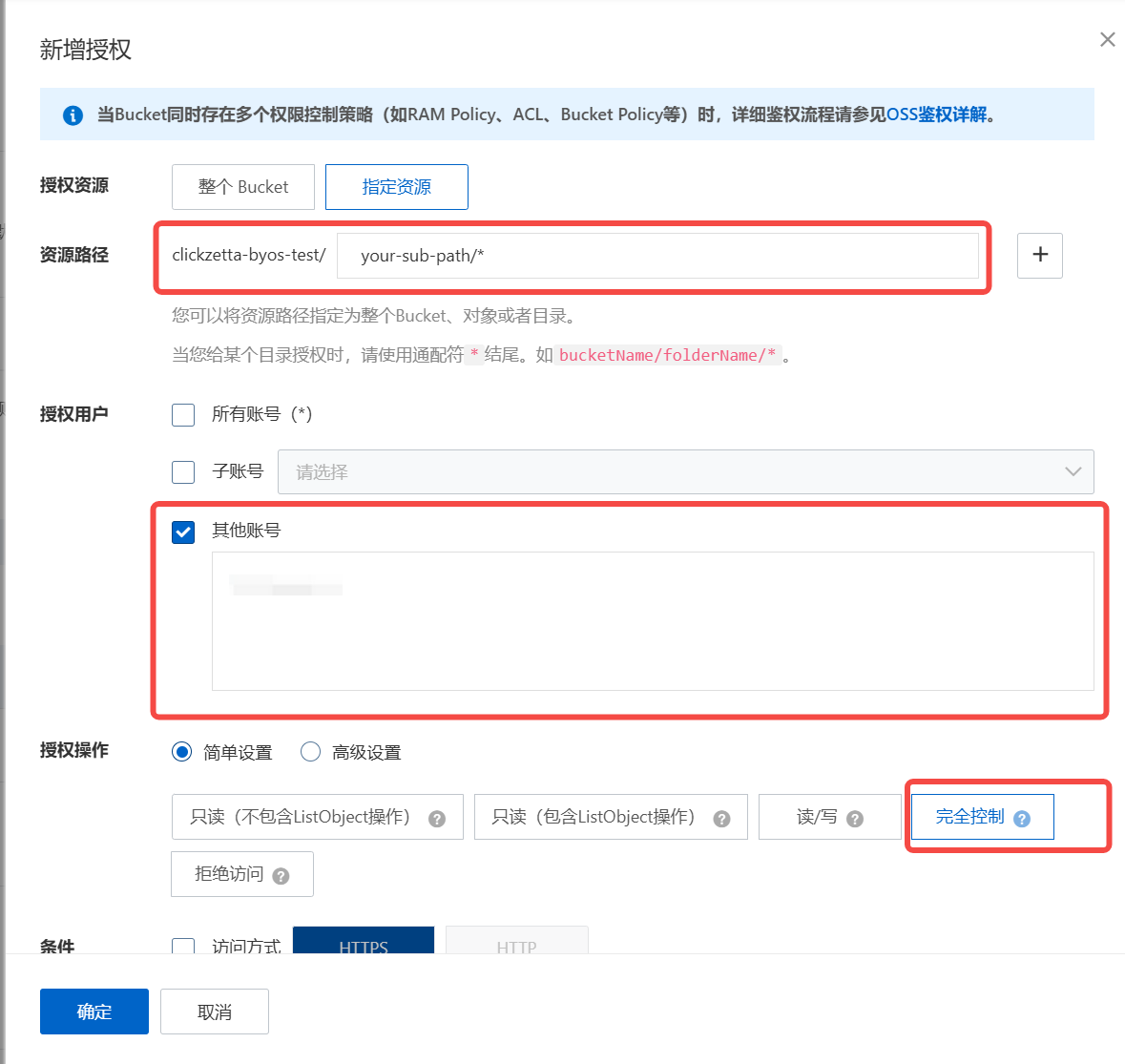

3. Configure the Authorization Policy

Select "Custom Authorization" and fill in the following information:

Item	Setting
Authorized Resource	acs:oss:*:*:your-bucket-name/* or acs:oss:*:*:your-bucket-name/your-path/*
Authorized User	Enter Singdata Lakehouse's root account ID: 1384322691904283
Authorized Actions	Select "Full Control".
Condition	Do not set.

Why is full control permission required?

The Singdata Lakehouse needs full control permissions under this path to ensure normal data addition, deletion, reading, and writing operations.

After completing the above configuration, you can use your private storage path and cloud platform root account ID when creating a private storage.
