Tencent Cloud BYOS Configuration
This guide will help you configure BYOS (Private Storage) on Tencent Cloud Object Storage (COS), enabling the Singdata Lakehouse to use your COS bucket as a data storage location.
Prerequisites
- Have a Tencent Cloud account with COS service enabled
- Know the cloud platform and region of your Singdata Lakehouse instance
- Have administrative permissions for COS buckets
Step 1: Prepare a COS Bucket
Create a New Bucket (Recommended)
If you choose to create a new bucket dedicated to the Singdata Lakehouse:
-
Log in to the Tencent Cloud COS Console
-

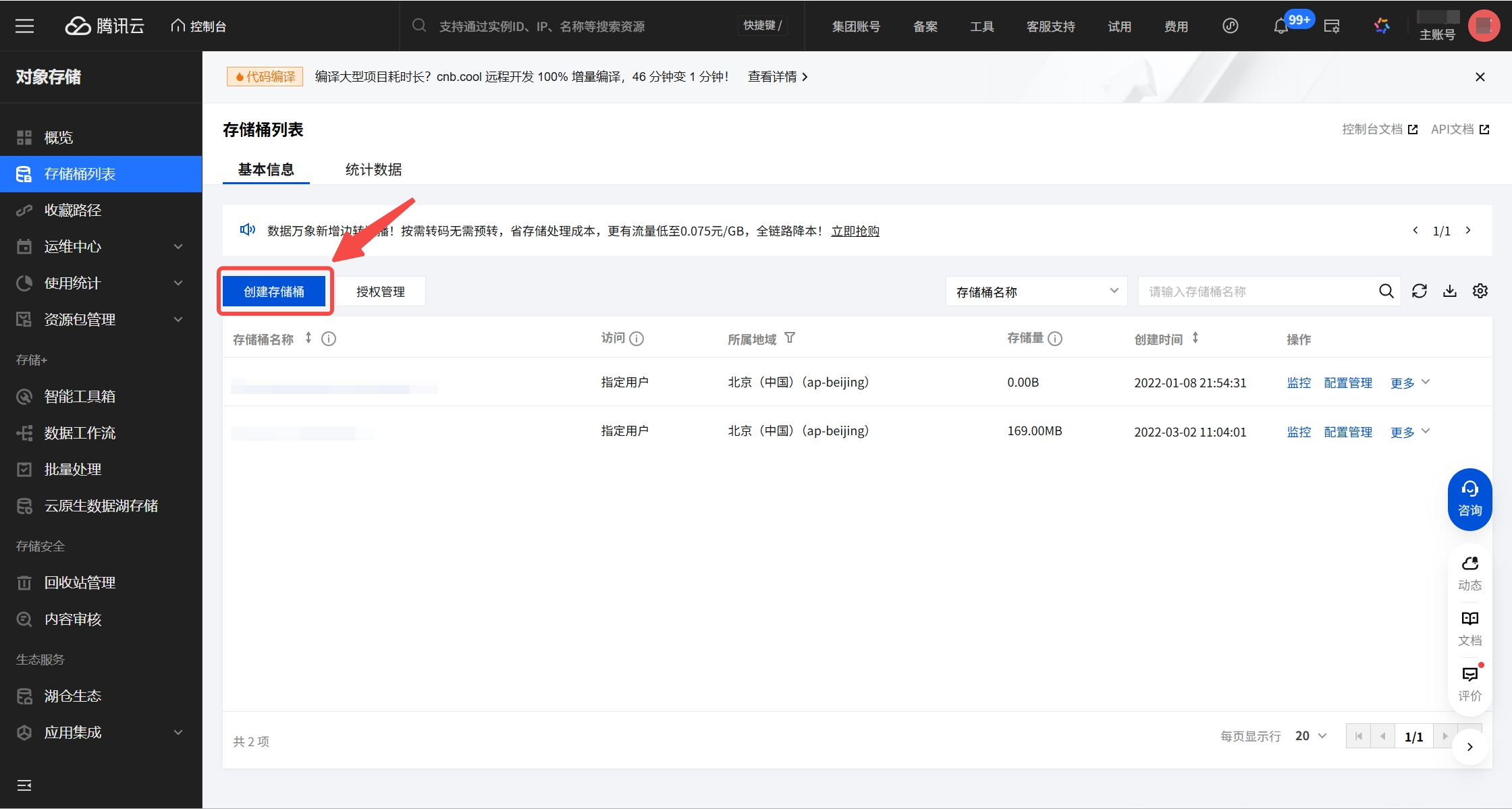

Click "Create Bucket"
Configure Bucket Basic Information
| Item | Setting | Description |
|---|---|---|
| Region | Same as the Lakehouse instance | :warning: Critical Requirement: Must be the same region as the Singdata Lakehouse instance. |
| Name | Custom (e.g., my-company-lakehouse) | Globally unique; recommend including a usage identifier. |
| Access Permission | Private read/write | Ensure data security. |
| Multi-AZ Feature | Disabled | Can be enabled based on data availability and reliability requirements. Enabling will increase storage costs charged by the cloud provider. |
| Versioning | Disabled | Avoid additional costs. |
| Server-Side Encryption | No encryption | The Lakehouse manages encryption on its own; global encryption may affect performance. |
Other configurations can be left disabled.
Use an Existing Bucket
If you choose to use an existing bucket:
Verify Region Configuration
The bucket must be in the same Region as the Singdata Lakehouse instance. For example:
- Lakehouse instance in: Tencent Cloud - Shanghai
- COS Bucket must be in: China - Shanghai

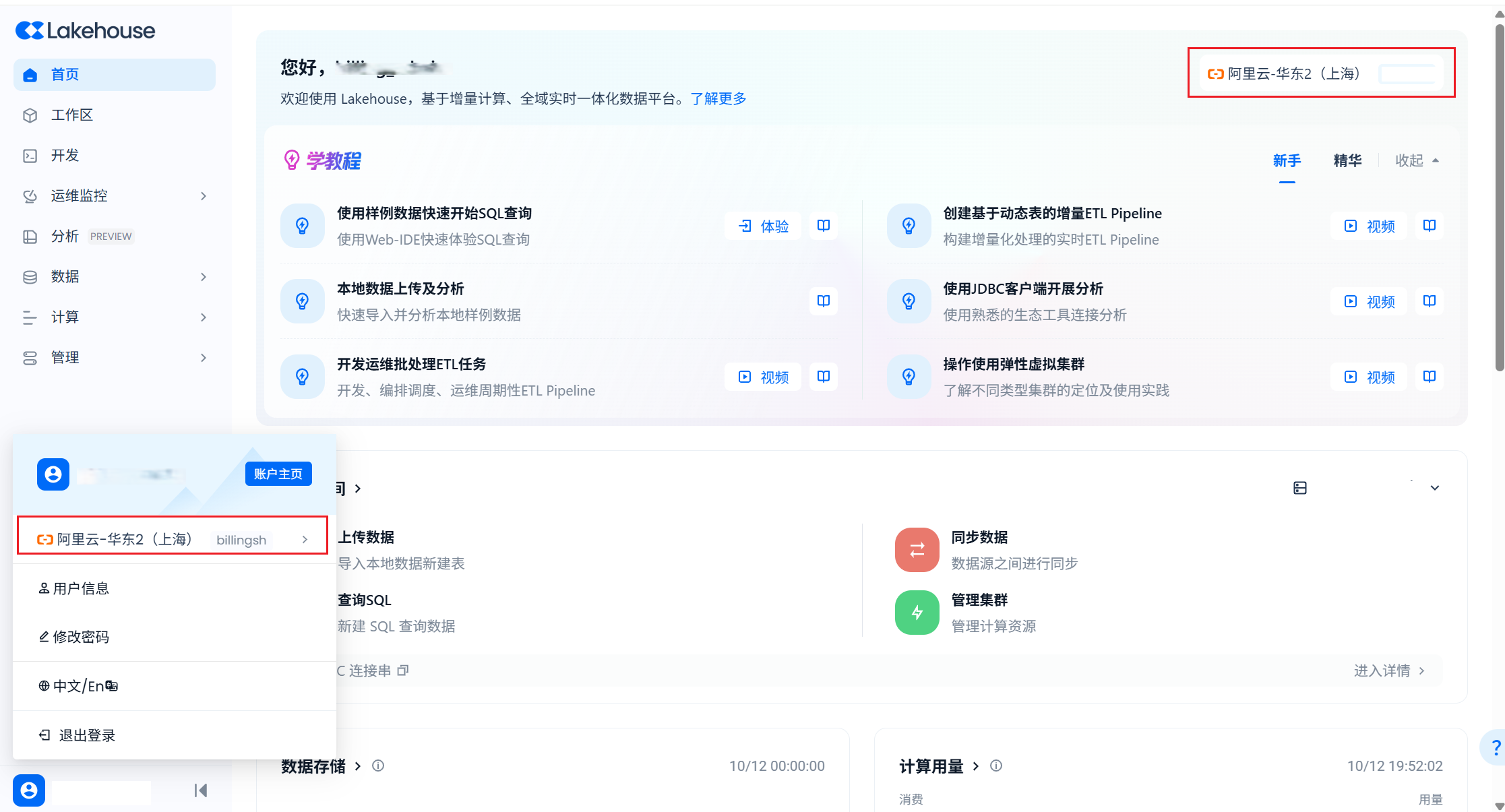

Your service instance's "Cloud Provider and Region" information can be found on the service instance homepage:
Choose a Storage Path
You can choose one of the following:
Option 1: Use the Entire Bucket (Recommended)
Applicable scenario: Bucket dedicated to the Lakehouse.
Option 2: Use a Specific Directory Under the Bucket
Applicable scenario: Need to isolate data for different purposes within the same bucket.
Data Security Warning:
-
Ensure the selected path is not shared with other business systems;
-
The Singdata Lakehouse will perform read, write, and delete operations on files under this path;
-
Sharing paths may lead to:
- Data being accidentally deleted or overwritten
- Impact on the normal operation of other business systems
- Data consistency issues
Recommendation: Create a dedicated bucket or use a dedicated directory for the Lakehouse.
Record Required Information
Please record the following information, which will be needed for subsequent configuration:
- Bucket Name
- Bucket Region
- Your Tencent Cloud Root Account ID
How to view the root account ID:
- Log in to the Tencent Cloud console
- Click the avatar in the upper right corner
- In "Account Information", view the "Account ID"
Step 2: Configure Bucket Access Policy
1. Go to the Bucket Management Page
- Find your bucket in the COS console and click the bucket name to enter the details page

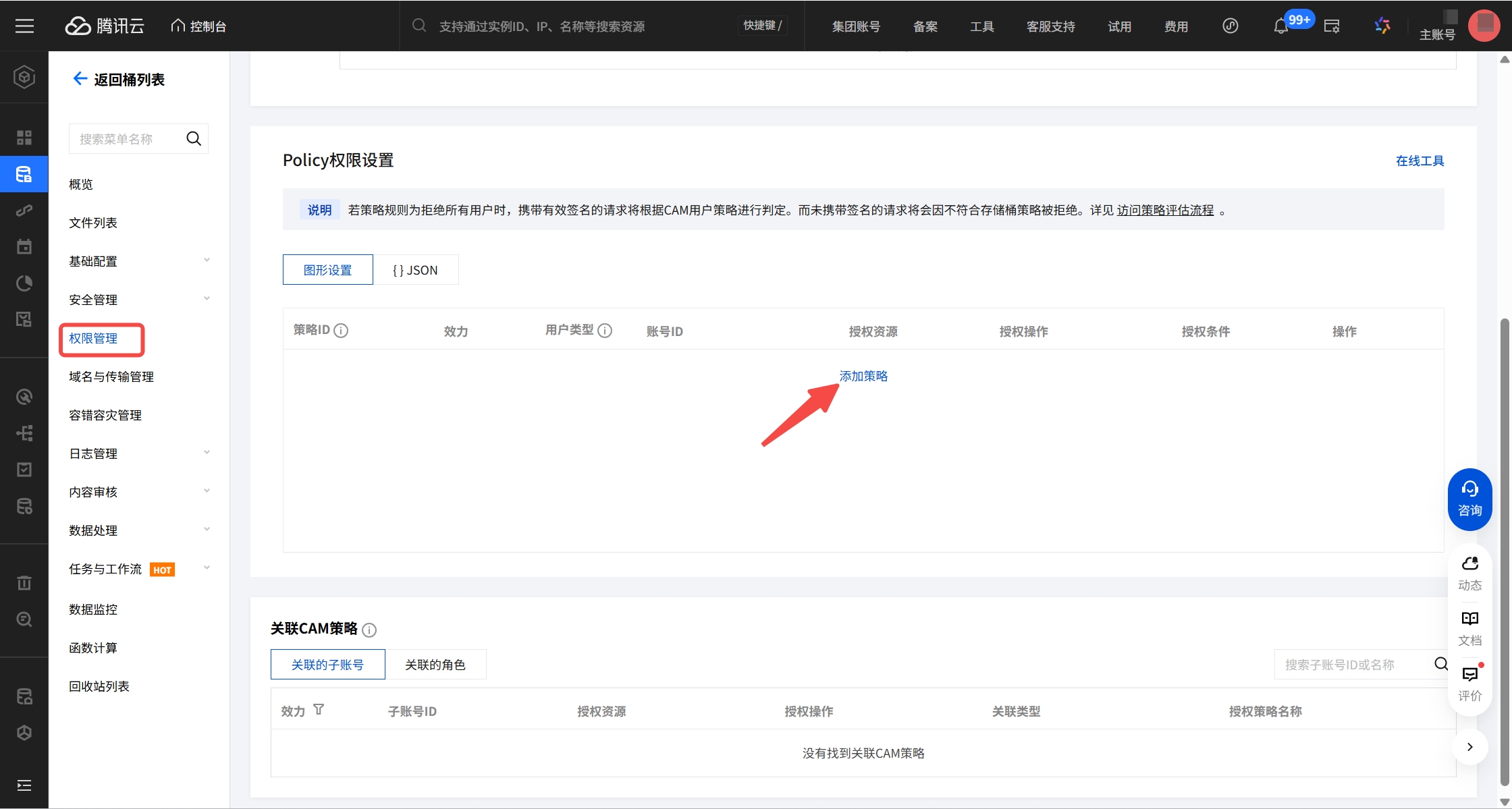

2. Go to the Permission Management Page
- Click "Permission Management" in the left menu.
- In the "Policy Permission Settings" section, click "Add Policy".

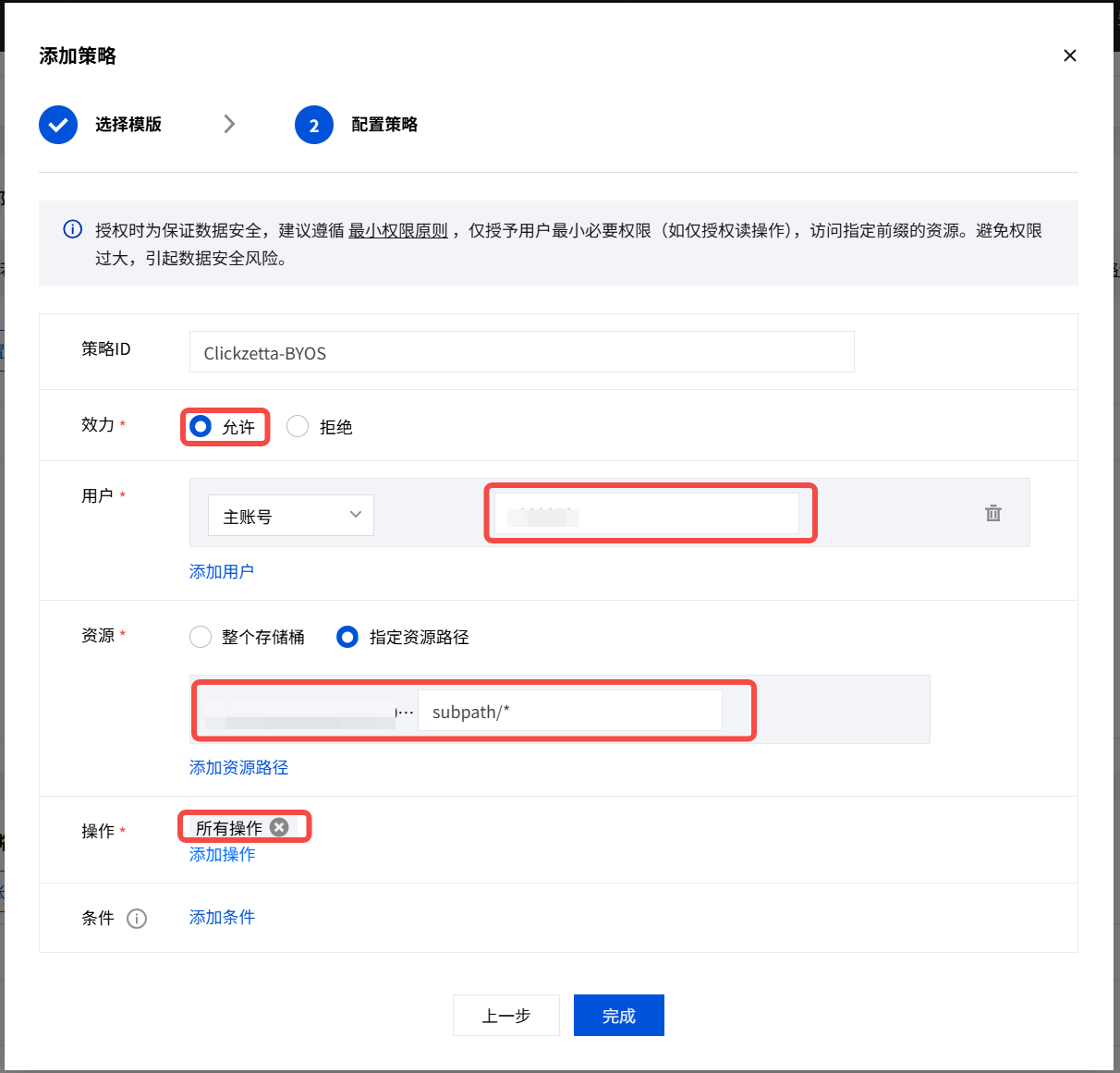

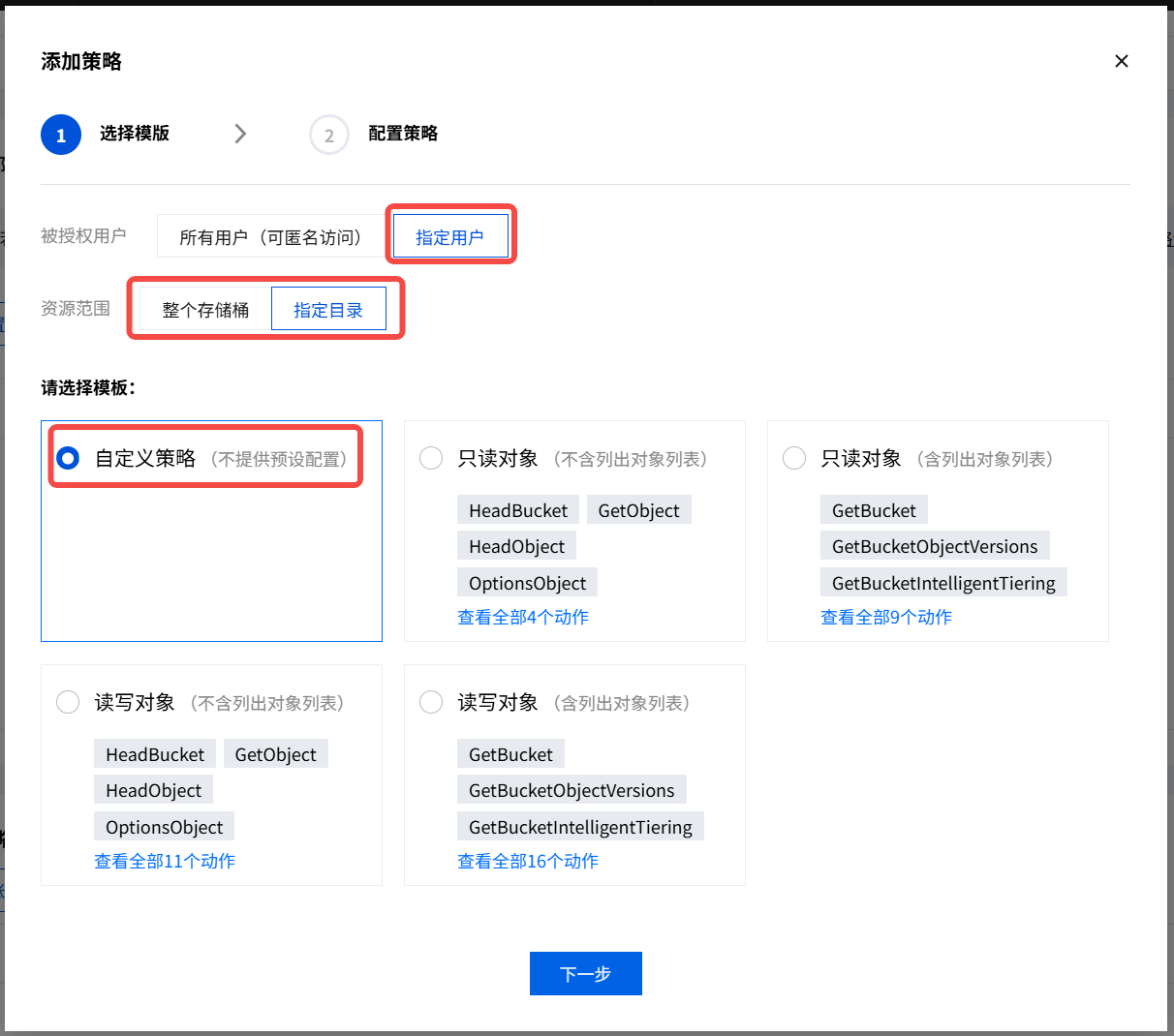

3. Configure the Authorization Policy
Select "Custom Authorization" and fill in the following information:
| Item | Setting |
|---|---|
| Authorized User | Specified User |
| Resource Scope | When the bucket is dedicated to Singdata: select the entire bucket When Singdata uses a specific directory: select specified directory |
| Select Template | Custom Policy |
| Effect | Allow |
| User | Select "Root Account" and enter Singdata Lakehouse's root account on Tencent Cloud: 100029595716 |
| Resource | When the bucket is dedicated to Singdata: select the entire bucket When Singdata uses a specific directory: select specified resource path and enter the path. Note: append /* after the subdirectory. |
| Action | Select "All Actions". |
| Condition | Do not add any conditions. |
Why are all operation permissions required?
The Singdata Lakehouse needs all operation permissions under this path to ensure normal data addition, deletion, and read/write functionality.
After completing the above configuration, you can use your private storage path and cloud platform root account ID when creating a new private storage.
