Verify the Operation Results of Schema Evolution

Singdata Lakehouse Schema Evolution supports changing columns in a table through the ALTER statement, including adding columns, modifying columns, and deleting columns. Modifying columns includes changing column names and column data types. It supports changes in complex types. This article provides corresponding examples to facilitate the verification of the operation results of Schema Evolution, quickly understand the results of Schema Evolution, and verify whether the implementation meets expectations.

Create schema and table

CREATE SCHEMA IF NOT EXISTS clickzetta_demo_schema_evolution_schema;
USE SCHEMA clickzetta_demo_schema_evolution_schema;
CREATE TABLE if not exists clickzetta_demo_schema_evolution_schema.schema_evolution (
    t_tinyint tinyint,
    t_snmallint smallint,
    t_int int,
    t_bigint bigint,
    t_float float,
    t_double double,
    t_decimal decimal(5,2)
)partitioned by(pt string);

Insert Data

insert into clickzetta_demo_schema_evolution_schema.schema_evolution select 1y,234s,10000,100000000,0.2f,0.004d,123.1bd,'202231120';

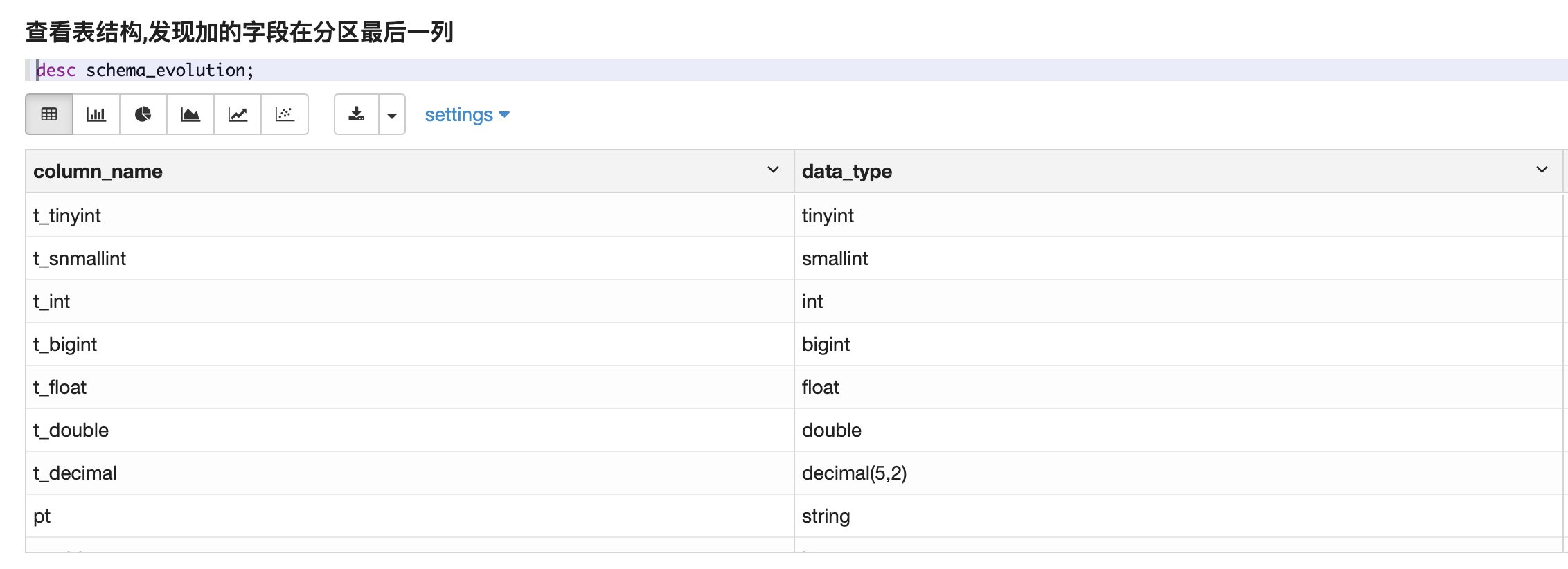

A column must be added to the partition table at a specified position, otherwise the added column will be the last column

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution ADD COLUMN t_add int comment 'add';

desc clickzetta_demo_schema_evolution_schema.schema_evolution;

Preview

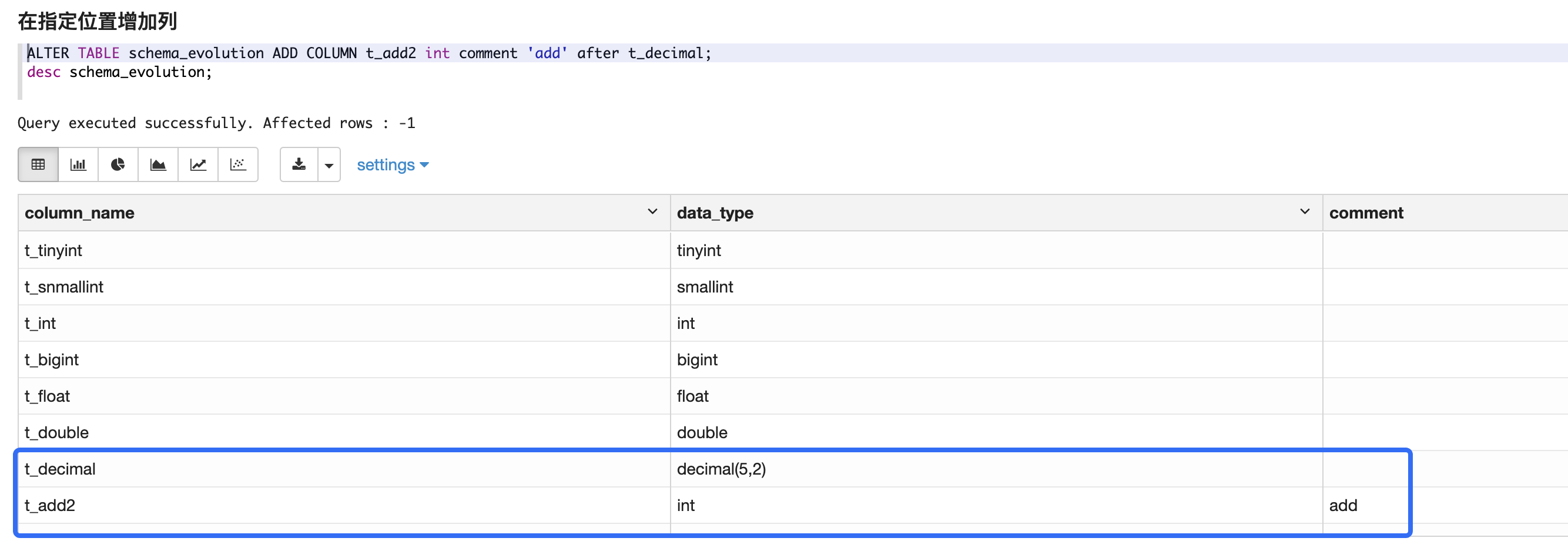

Add Columns at Specified Position

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution ADD COLUMN t_add2 int comment 'add' after t_decimal;
desc clickzetta_demo_schema_evolution_schema.schema_evolution;

Preview

Delete Column

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution DROP   COLUMN t_add;
desc clickzetta_demo_schema_evolution_schema.schema_evolution;

Rename Columns

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution rename COLUMN t_add2 to t_add;
desc clickzetta_demo_schema_evolution_schema.schema_evolution;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution;

Modify Field Position

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution change COLUMN t_add  after t_tinyint ;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution;

Modify Data Types

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution change COLUMN t_decimal  type DECIMAl(7,4) ;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution;

Unsupported type conversions will result in an error

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution change COLUMN t_decimal  type date ;

Modify Field Comment

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution change COLUMN t_tinyint  comment 'mysmallint';
desc clickzetta_demo_schema_evolution_schema.schema_evolution;

Complex Type Modification

Create Table

 CREATE TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 (
  point struct<x: int, y: double>,
  points array<struct<x: double, y: double>>,
  points_ky map<struct<x: int>, struct<a: int>>
    );

Insert Data

insert into clickzetta_demo_schema_evolution_schema.schema_evolution_01 values(struct(1D,2D),array(struct(1D,2D)),null);

Add Column

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 ADD COLUMN point.z double ;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution_01;

Delete the z column in the point struct

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 DROP COLUMN point.z;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution_01;

Rename the x column in the point struct

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 rename COLUMN point.x to xx;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution_01;

Delete the column y in the nested struct of the array

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 DROP COLUMN points.element.y;
desc clickzetta_demo_schema_evolution_schema.schema_evolution_01;

Modify struct type

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 CHANGE COLUMN point.xx type bigint;
desc clickzetta_demo_schema_evolution_schema.schema_evolution_01;

Modify Complex Type Position

ALTER TABLE clickzetta_demo_schema_evolution_schema.schema_evolution_01 CHANGE COLUMN point.y first;
select * from clickzetta_demo_schema_evolution_schema.schema_evolution_01;

Cleanup

DROP SCHEMA IF EXISTS clickzetta_demo_schema_evolution_schema;

Congratulations, it's done.

Please enjoy and learn more!

Appendix

Download Zeppelin Notebook Source File

The code in this document is also available in a version that runs on Zeppelin. If you want to run the code directly, please follow the documentation to install Zeppelin.

03.Schema Evolution.ipynb
