Accessing Iceberg Tables in Snowflake Open Catalog via External Catalog

Overview

Lakehouse supports connecting to third-party Iceberg REST APIs through the Catalog Integration feature, enabling seamless integration with external data catalogs. This document describes how to connect to and use Snowflake's Open Catalog feature.

Features:

Unified data access: Access Iceberg tables in Snowflake Open Catalog through a unified interface
Real-time data synchronization: Directly read the latest data in Snowflake without data replication
Metadata mapping: Automatically map table structures and metadata from Snowflake
OAuth authentication: Support for secure OAuth 2.0 authentication mechanism

Environment Preparation

Snowflake Open Catalog provides two types of catalogs:

Internal Catalog:

Features: Lakehouse supports full read and write operations
Data management: Supports full lifecycle operations including table structure changes, data inserts, updates, and deletes

External Catalog:

Features: Lakehouse only supports read-only operations
Data access: Supports complex queries and cross-table analysis, but does not support data modification operations

Prepare Iceberg tables in Snowflake and register them in Snowflake Open Catalog. Please refer to the Snowflake official documentation

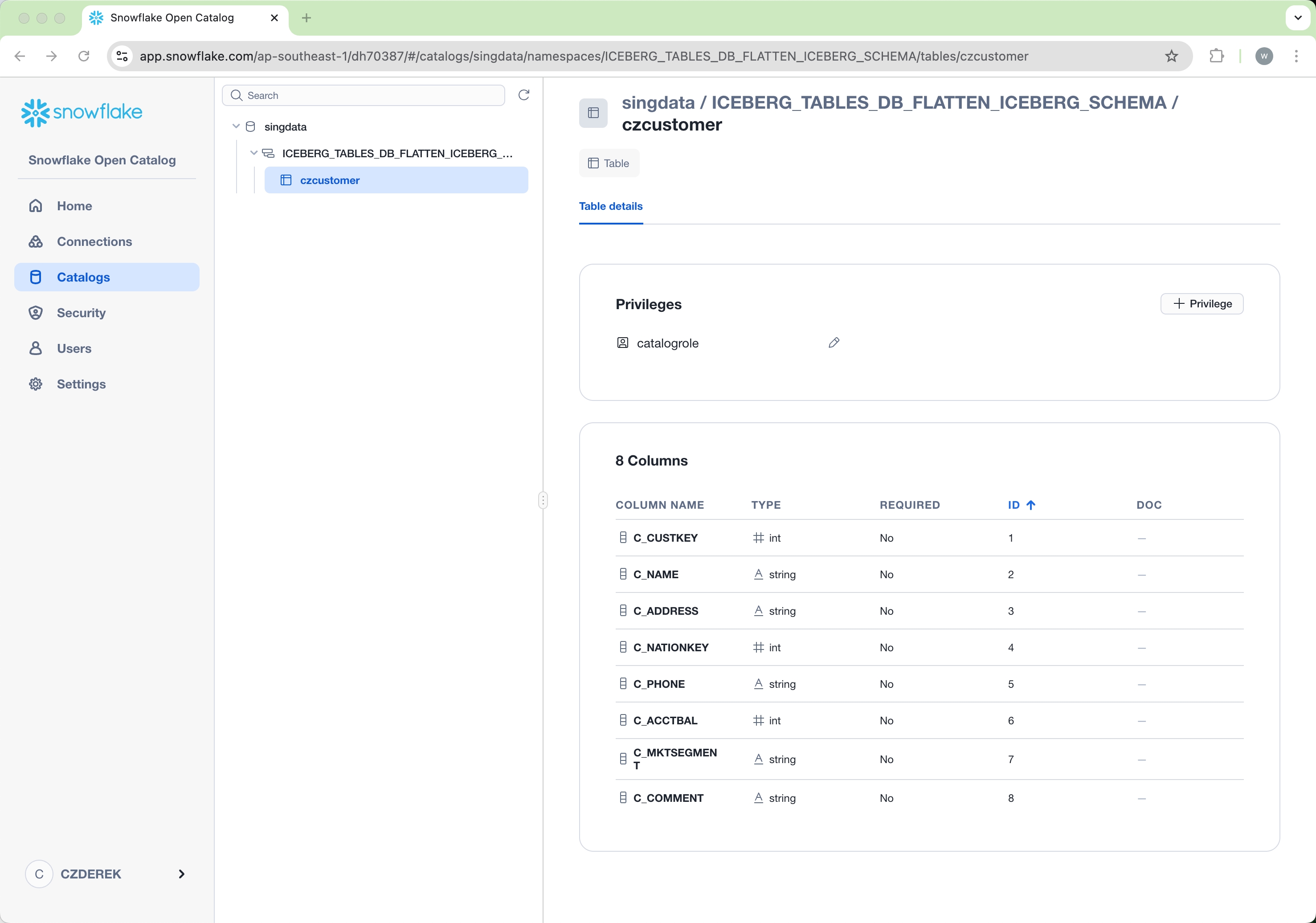

Result: A table in the Snowflake engine is registered in Snowflake Open Catalog:

Database name: ICEBERG_TABLES_DB_FLATTEN
Schema name: ICEBERG_SCHEMA
Iceberg table name: czcustomer (lowercase required. In Snowflake's CREATE TABLE DDL, use double quotes to prevent the table name from being automatically converted to uppercase)

Note: When creating a Database in the Snowflake engine, add the CATALOG_SYNC_NAMESPACE_MODE and CATALOG_SYNC_NAMESPACE_FLATTEN_DELIMITER parameters to adjust the Catalog hierarchy. With the following configuration, in Snowflake Open Catalog, Database and Schema are merged into a single level: "ICEBERG_TABLES_DB_FLATTEN_ICEBERG_SCHEMA"


CREATE OR REPLACE DATABASE iceberg_tables_db_flatten
CATALOG_SYNC_NAMESPACE_MODE = 'FLATTEN'
CATALOG_SYNC_NAMESPACE_FLATTEN_DELIMITER = '_';

Configuration Steps

Step 1: Create a Catalog Connection

Use the following SQL statement to create a connection to Snowflake Open Catalog:


CREATE CATALOG CONNECTION snow_opencatalog
    TYPE ICEBERG_REST
    URI='https://lhnrdre-derekmeng.snowflakecomputing.com/polaris/api/catalog'
    ACCESS_REGION = 'ap-southeast-1'
    OAUTH_CLIENT_ID='d3r3cuhHitrI+fUpFtvXxxxxxxx'
    OAUTH_CLIENT_SECRET='gY3ZWOGoSMM1tKK7QaqQYKpSdTcPY1ruVv7xxxxxxx'
    OAUTH_SCOPE='PRINCIPAL_ROLE:ALL'
    NAMESPACE='ICEBERG_TABLES_DB_FLATTEN_ICEBERG_SCHEMA'
    WAREHOUSE='singdata'
    WITH PROPERTIES (
        'client.region'='ap-southeast-1',
        'io-impl'='org.apache.iceberg.aws.s3.S3FileIO'
    );

Parameter	Description	Example
TYPE	Connection type, fixed as `ICEBERG_REST`	`ICEBERG_REST`
URI	Snowflake Polaris API endpoint	https://account.snowflakecomputing.com/polaris/api/catalog
ACCESS_REGION	Region where the accessed object is located	`ap-southeast-1`
OAUTH_CLIENT_ID	OAuth client ID	Obtained when creating a Service connection in Snowflake Open Catalog
OAUTH_CLIENT_SECRET	OAuth client secret	Obtained when creating a Service connection in Snowflake Open Catalog
OAUTH_SCOPE	OAuth authorization scope	`PRINCIPAL_ROLE:ALL`
NAMESPACE	The second level in Snowflake Open Catalog	`ICEBERG_TABLES_DB_FLATTEN_ICEBERG_SCHEMA`
WAREHOUSE	Snowflake Open Catalog's Catalog name	`singdata`

Step 2: Create an External Table

Create an external table to map tables in Snowflake Open Catalog:


-- Create external table mapping to the table in Snowflake Open Catalog (table name must match)
CREATE EXTERNAL TABLE IF NOT EXISTS `czcustomer`
USING ICEBERG
CONNECTION snow_opencatalog;

Note: The external table name must exactly match the table name in Snowflake.

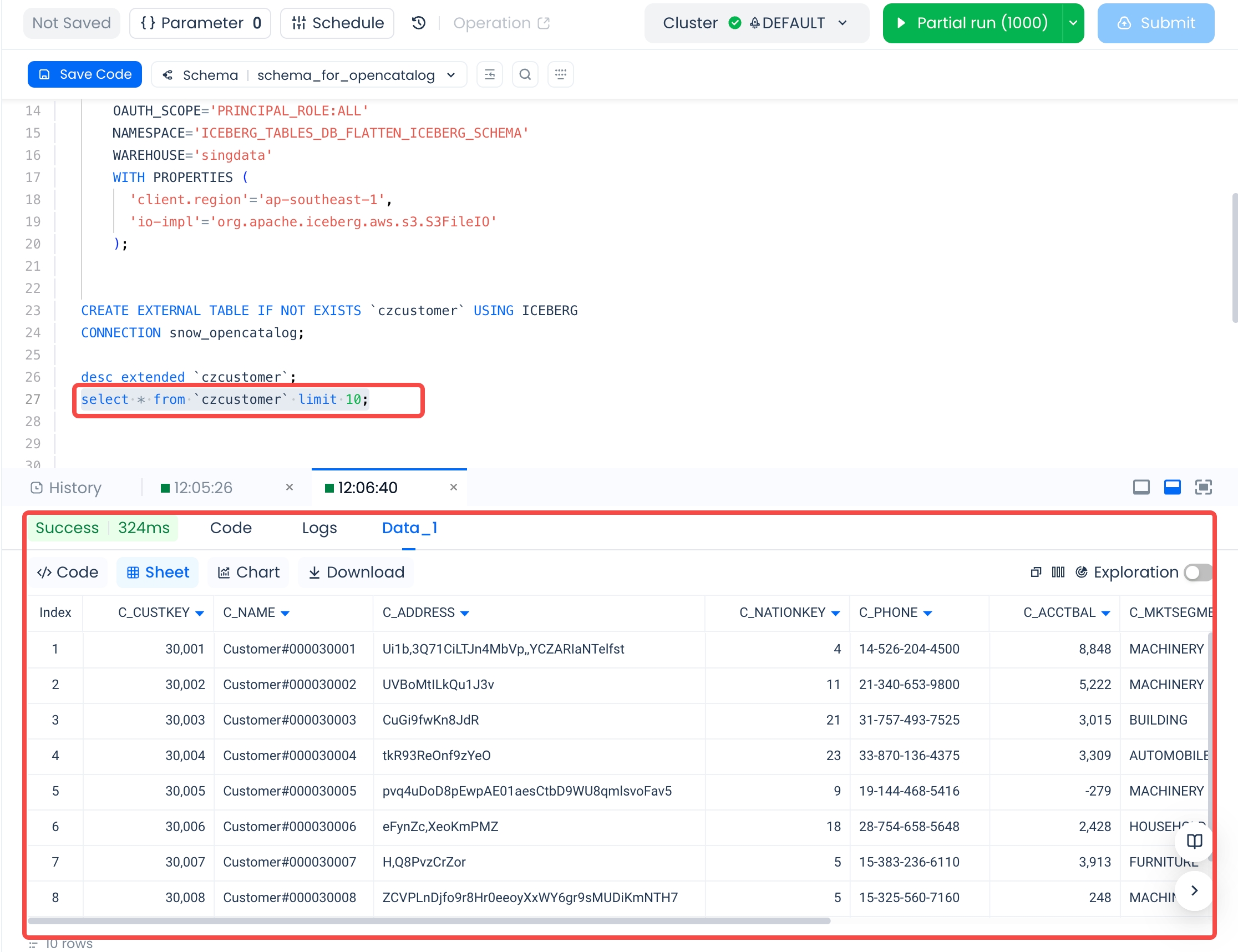

Step 3: Verify and Query

Verify the table structure and query data:


-- View table structure
DESC EXTENDED `czcustomer`;

-- Query data
SELECT * FROM `czcustomer` LIMIT 10;

Usage Limitations

When connecting to S3-based Snowflake-managed Iceberg tables, write and update operations are not supported
External table names must exactly match the source table names in Snowflake
Currently only lowercase table names are supported
Table name conversion is not supported

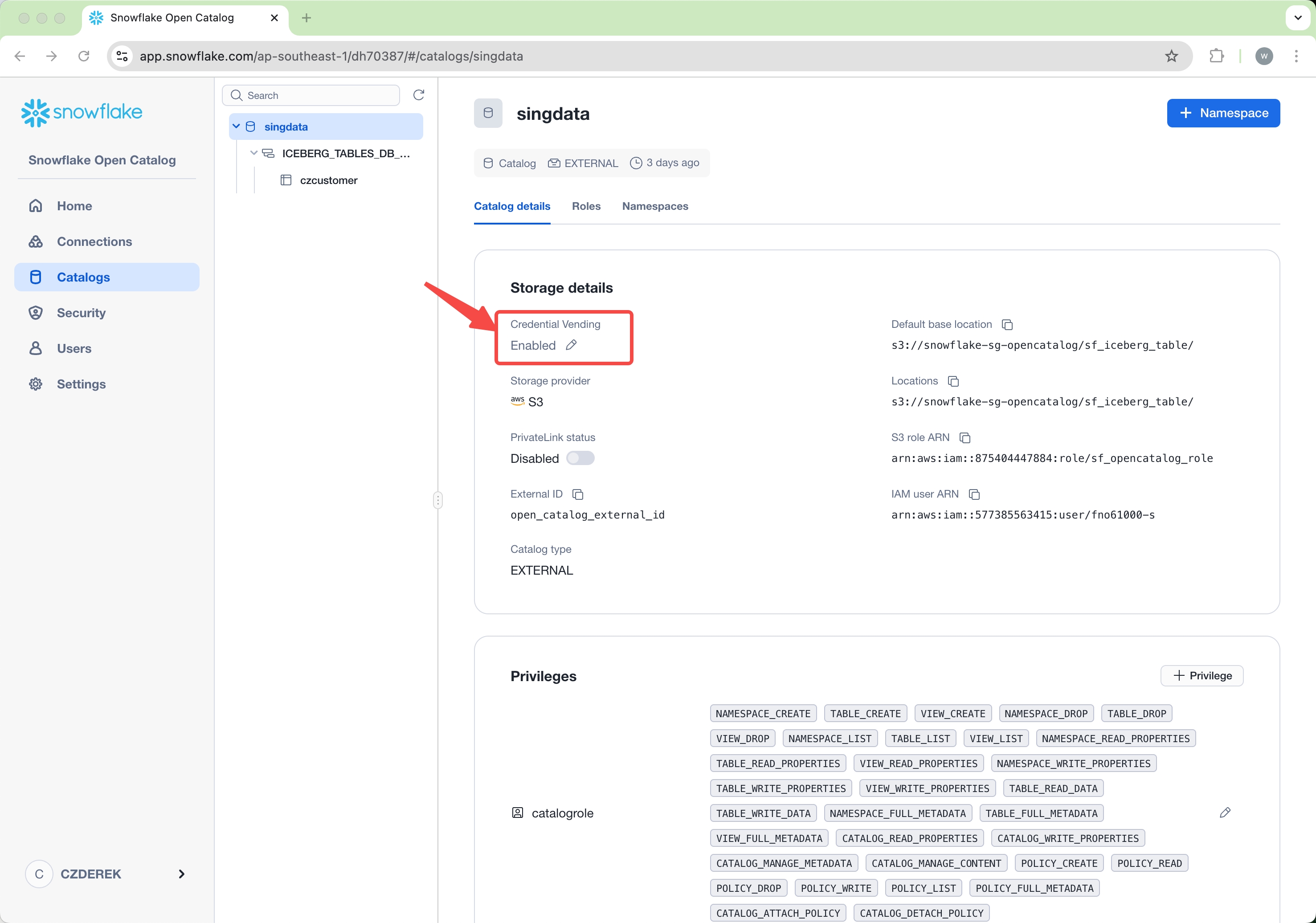

Credential Vending must be enabled on the target Catalog service side
