Installation and Usage Guide for N8N Integration with Unified AI Workflows

N8N is a workflow automation platform that provides technical teams with code-like flexibility and no-code speed. With 400+ integrations, native AI capabilities, and a fair-code license, N8N enables you to build powerful automation flows while maintaining full control over your data and deployment.

Singdata Lakehouse integrates with N8N. This document is a complete installation, deployment, and daily usage guide to help you quickly get started with the Singdata Lakehouse and N8N integration!

In addition to serving as a standard N8N node, the Singdata Lakehouse extension also provides data comparison features, including:

  • Multi-database support: In addition to supporting Singdata Lakehouse, this extension also supports Alibaba Cloud MaxCompute, HUAWEI CLOUD DLI, PostgreSQL, Singdata, MySQL, SQLite, Oracle, Microsoft SQL Server, and more.
  • Data comparison: Table data comparison, schema comparison, real-time difference detection.
  • Workflow automation: Visual workflow based on N8N.
  • Automatic parameter filling: Intelligently fetches connection information and table lists from upstream nodes.
  • Expression references: Supports N8N expression syntax for referencing upstream data.

Below are descriptions of the extension nodes:

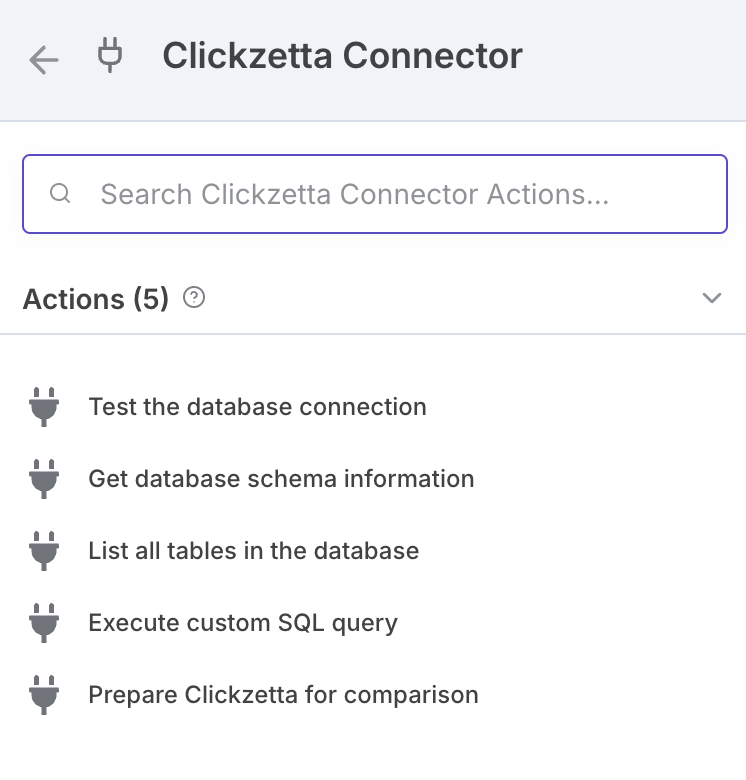

  • N8N nodes supporting Singdata Lakehouse:

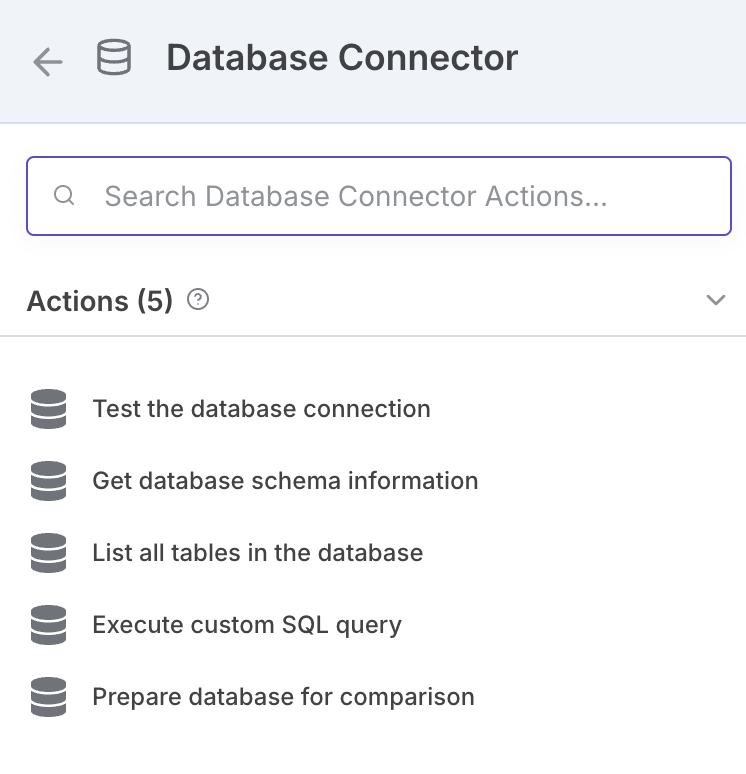

  • N8N nodes supporting more database types:

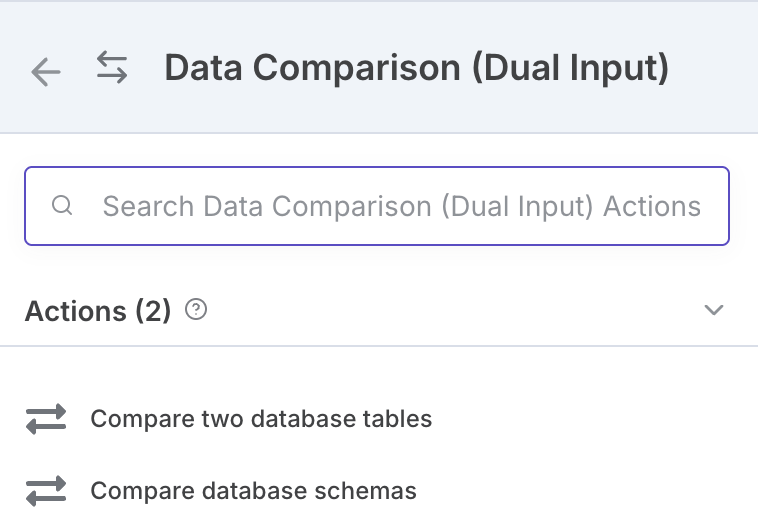

  • Data comparison node (async execution):

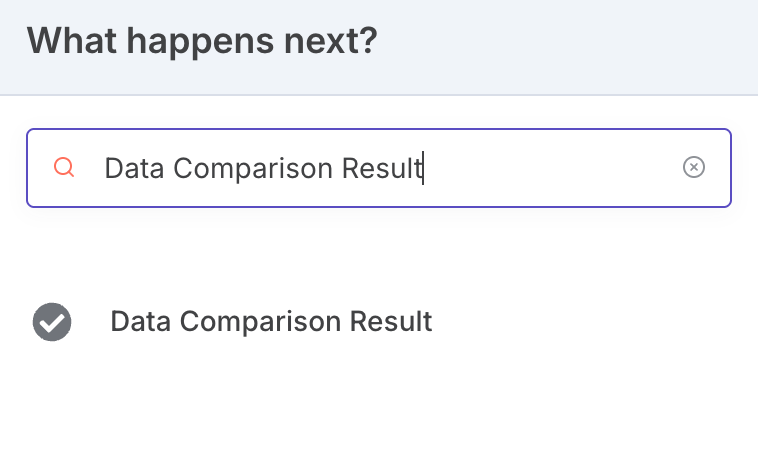

  • Get data comparison results node:

šŸ“‹ Prerequisites

  • Install Docker Desktop or Docker Engine

  • At least 8GB of memory

  • Available ports:

    • 80 (Nginx unified entry)
    • 5678 (N8N, modifiable via .env)
    • 8000 (API, modifiable via .env)
    • 3000 (Grafana, modifiable via .env)
    • 9090 (Prometheus, modifiable via .env)
    • 5432 (PostgreSQL, modifiable via .env)

šŸŽÆ Installation and Deployment

1ļøāƒ£ Download the Deployment Package

Download data-diff-n8n-deploy-latest.zip and extract it to any directory:

# Download using curl (recommended)
curl -L -O https://github.com/yunqiqiliang/clickzetta_quickstart/raw/main/datadiff_n8n_clickzetta/data-diff-n8n-deploy-latest.zip

# Or download using wget (overwrite existing files)
wget -O data-diff-n8n-deploy-latest.zip https://github.com/yunqiqiliang/clickzetta_quickstart/raw/main/datadiff_n8n_clickzetta/data-diff-n8n-deploy-latest.zip

# Extract deployment package (overwrite mode)
unzip -o data-diff-n8n-deploy-latest.zip
cd data-diff-n8n/

# If you need interactive confirmation for each file overwrite
# unzip data-diff-n8n-deploy-latest.zip

2ļøāƒ£ Check Ports (Recommended)

Check if the required ports are available before deployment:

Windows:

check-ports.bat

macOS/Linux:

./check-ports.sh

The check script automatically detects whether all required ports are available. If port conflicts are found, you can:

  1. Stop the service occupying the port
  2. Or edit the .env file to modify the corresponding port after running ./deploy.sh setup

3ļøāƒ£ Initialize Configuration

Windows:

deploy.bat setup

macOS/Linux:

./deploy.sh setup

This command will:

  • Create the .env configuration file
  • Automatically generate secure passwords
  • Prepare the deployment environment

āš ļø Important Reminder:

  • After initialization, please immediately view and save the passwords in the .undefined file.

  • Automatically generated passwords include:

    • PostgreSQL database password (POSTGRES_PASSWORD)
    • N8N basic authentication password (N8N_BASIC_AUTH_PASSWORD, default username is admin)
    • Grafana admin password (GRAFANA_PASSWORD, default username is admin)

  • Please keep these passwords safe. They cannot be recovered if lost.

4ļøāƒ£ Start Services

First Deployment

Windows:

deploy.bat init

macOS/Linux:

./deploy.sh init

Startup time depends on whether images need to be downloaded:

  • First startup: 10-20 minutes (all Docker images need to be downloaded, approximately 2GB)
  • Subsequent startups: 2-3 minutes (images are already local)

During startup, the system will:

  1. Automatically pull all required Docker images (6 services)
  2. Create and initialize the PostgreSQL database
  3. Configure Grafana dashboards
  4. Start all services and perform health checks

Daily Usage

Windows:

deploy.bat start

macOS/Linux:

./deploy.sh start

The start command directly starts all services, suitable for daily use.

šŸ’” Tip:

  • Use deploy.sh status to check startup progress
  • Use deploy.sh logs to view service logs

šŸŽ‰ Access Services

After deployment is complete, you can access the services as follows:

ServiceAccess URLDescription

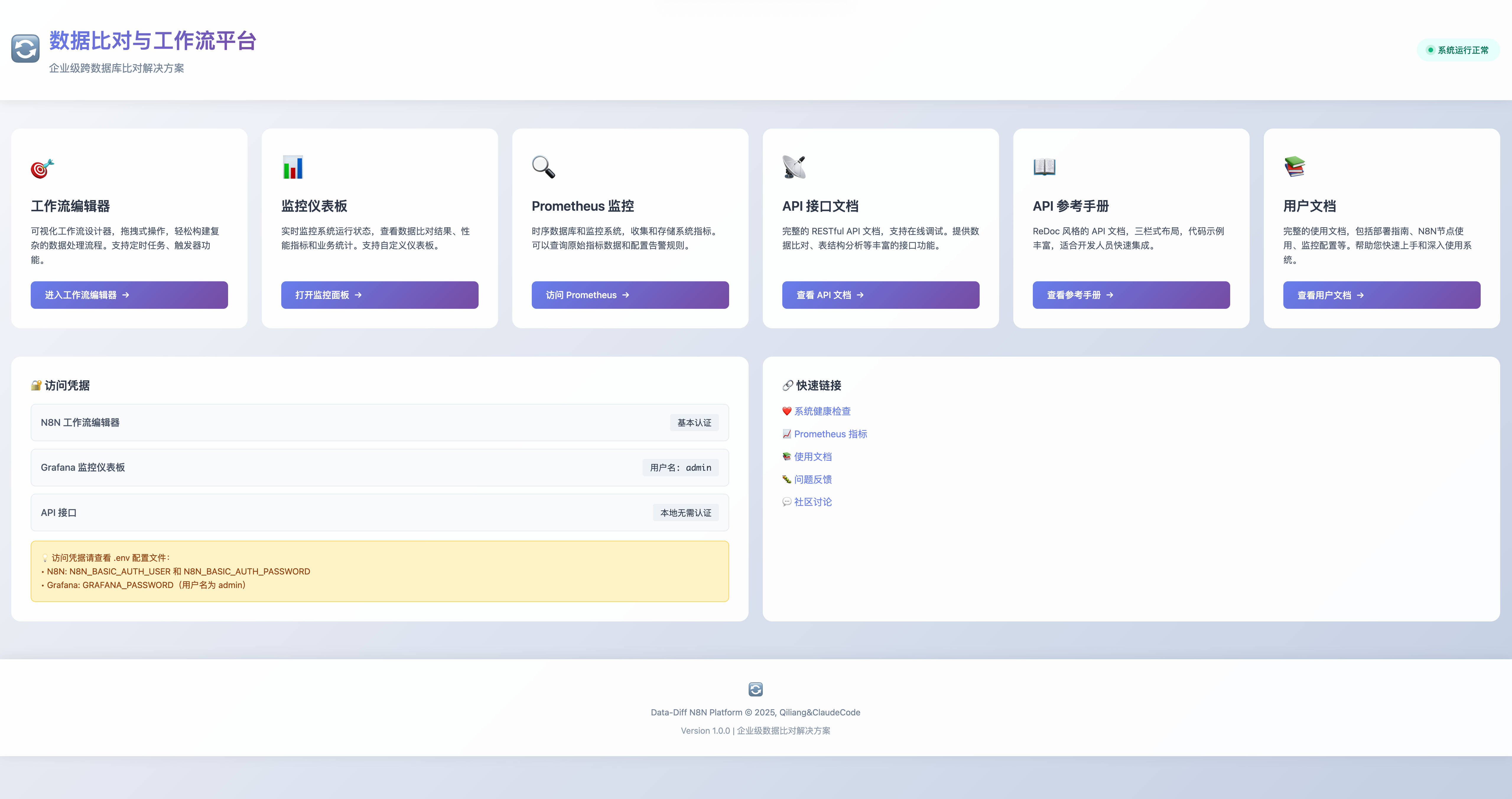

šŸ  Homehttp://localhostSystem overview and quick navigation
šŸ”„ N8N Workflowhttp://localhost/n8n/Create and manage data comparison workflows
šŸ“Š API Docshttp://localhost/api/docsRESTful API interface documentation
šŸ“– API Referencehttp://localhost/api/redocAPI reference manual (ReDoc style)
šŸ“ˆ Grafana Monitoringhttp://localhost/grafana/Data quality and system monitoring dashboards
šŸ” Prometheushttp://localhost/prometheus/Metrics query and alert management

For login credentials, check the passwords in the .env file.

šŸ’” Tips:

  • All services are accessed through port 80 (Nginx reverse proxy is automatically configured).
  • Due to sub-path configuration, direct access through service ports is not supported (e.g., N8N's port 5678).
  • Remote access: When deployed on a server, replace localhost with the server IP address (e.g., http://172.17.1.220).
  • Modify port: To modify port 80, edit HTTP_PORT in the .env file and restart the services.

šŸ› ļø Daily Operations

Check Service Status

# Windows
deploy.bat status

# macOS/Linux
./deploy.sh status

View Logs

# View all service logs
deploy.bat logs

# View specific service logs
deploy.bat logs n8n

Stop Services

Windows:

deploy.bat stop

macOS/Linux:

./deploy.sh stop

Restart Services

Windows:

deploy.bat restart

macOS/Linux:

./deploy.sh restart

Other Commands

Full stop (remove containers):

./deploy.sh stop-all

Full restart (including initialization check):

./deploy.sh restart-full

šŸ’” Tips:

  • For daily operations, use start, stop, restart.
  • stop only stops containers; stop-all removes them.
  • init and restart-full include full initialization checks, suitable for troubleshooting.

šŸ“ Configuration Guide

Edit the .env file to modify:

  • Port configuration: Unified access through port 80 by default
  • Password settings: Modify access passwords for each service
  • Resource limits: Adjust the number of API worker processes, etc.
  • Public URL: Configure N8N's external access address

Example:

# Modify the unified entry port (default 80)
HTTP_PORT=8080

# Configure N8N public URL (for generating invitation links, etc.)
N8N_PUBLIC_URL=http://172.17.1.220/n8n

# Modify the number of API worker processes (default 4)
API_WORKERS=8

# Modify the database port (if external access is needed)
POSTGRES_PORT=5433

šŸ”§ Diagnostic Tools

check-env-vars.sh Usage Guide

Use this tool for diagnostics when encountering database connection or authentication issues:

./check-env-vars.sh

Applicable scenarios:

  • N8N or API service reports "password authentication failed"
  • Need to verify whether environment variables are correctly passed to containers
  • Check the actual configuration values used inside containers

Feature description:

  1. Display configuration in the .env file
  2. Show environment variables after Docker Compose parsing
  3. Check actual environment variables of running containers
  4. Test whether the database connection is working

Example output:

=== Environment Variable Check Tool ===

1. Check .env file content:
POSTGRES_PASSWORD setting: VUEk30jlqj6rd48U

2. Environment variables after Docker Compose parsing:
[Display environment variable configuration for each service]

3. Actual environment variables of running containers:
[Display actual environment variables inside containers]

4. Test database connection:
āœ“ Can connect using .env password

If password mismatch is found, a cleanup and redeployment is usually needed:

./deploy.sh clean
./deploy.sh setup
./deploy.sh init

šŸ”„ Update Deployment

When a new version is released, follow these steps to update:

Update with Configuration Preservation

# 1. Backup current configuration (recommended)
cp .env .env.backup

# 2. Download the latest version (overwrite old files)
curl -L -O https://github.com/yunqiqiliang/clickzetta_quickstart/raw/main/datadiff_n8n_clickzetta/data-diff-n8n-deploy-latest.zip

# 3. Extract and overwrite (excluding .env file)
unzip -o data-diff-n8n-deploy-latest.zip -x "data-diff-n8n/.env"

# 4. Restart services
./deploy.sh restart

Full Overwrite Update

# Warning: This will overwrite all files, including configurations
unzip -o data-diff-n8n-deploy-latest.zip

šŸ’” Tips:

  • The -o option means automatically overwrite all files without prompting.
  • The -x option can exclude specific files from being overwritten.
  • It is recommended to always backup the .env file first, as it contains your password configuration.

šŸšØ Troubleshooting

Port Occupied

Port 80 is used as the unified entry by default. If port 80 is occupied:

  1. Edit the .env file and modify HTTP_PORT:

    HTTP_PORT=8080  # or another available port

  2. Restart services:

    ./deploy.sh restart

  3. Access via new port:

    http://localhost:8080

Docker Not Running

Make sure Docker Desktop is started and running.

Service Inaccessible

  1. Use deploy.bat status to check service status
  2. Use deploy.bat logs to view error logs
  3. Ensure the firewall allows access to the corresponding ports

Database Initialization Error

If you see the following errors:

  • Database initialization failed: datadiff database does not exist
  • Database tables were not created correctly
  • password authentication failed for user "postgres"
  • relation "data_diff_results.comparison_summary" does not exist

Cause:

  1. The PostgreSQL data volume retains old configuration or passwords.
  2. The database initialization script failed to execute (PostgreSQL only executes scripts in /docker-entrypoint-initdb.d/ when the data volume is first created).

Solution:

# Full cleanup and redeployment./deploy.sh clean./deploy.sh setup./deploy.sh init

Notes:

  • PostgreSQL uses Docker volumes to store data. init-databases.sql is executed upon first startup.
  • If the data volume already exists, the SQL file will not be re-executed even if updated.
  • The clean command removes the data volume to ensure re-initialization on the next startup.

Important: The clean command will delete all data. Please ensure important data is backed up.

šŸ“š Advanced Usage

Create Your First Comparison Workflow

  1. Access N8N (http://localhost/n8n/)

  2. Log in using the credentials in .env

    • Username: admin (or check N8N_BASIC_AUTH_USER)
    • Password: Check N8N_BASIC_AUTH_PASSWORD in .env

  3. Create a new workflow

  4. Add a "Data Comparison Dual Input" node

  5. Configure source and target database connections

  6. Run the workflow and view the results

View Monitoring Dashboards

  1. Access Grafana (http://localhost/grafana/)

  2. Log in using admin and the password in .env

  3. Open the pre-configured dashboards:

    • Business Metrics: View data quality and comparison results
    • System Monitoring: View performance and resource usage

Using API Endpoints

  1. Access API documentation (http://localhost/api/docs)

  2. Supported main endpoints:

    • /api/v1/compare/tables - Compare data between two tables
    • /api/v1/compare/schemas/nested - Compare database schema structures
    • /api/v1/connections/test - Test database connection
    • /api/v1/tables/list - Get database table list
    • /api/v1/query/execute - Execute SQL queries
    • /api/v1/maintenance/db-maintenance - Database maintenance operations
    • /api/v1/metrics - Get system metrics in Prometheus format

  3. You can test API calls directly on the documentation page.

šŸ†˜ Need Help?

  • šŸ“– View project documentation
  • šŸ› Report issues
  • šŸ’¬ Contact technical support

āš ļø Security Tips

  • Please be sure to modify the default passwords in the .env file
  • Regularly backup database data
  • Restrict the network access scope of the services

Reference

This project is open source: https://github.com/yunqiqiliang/data-diff-n8n
