Lakehouse MCP Server Introduction and Quick Deployment

Introduction

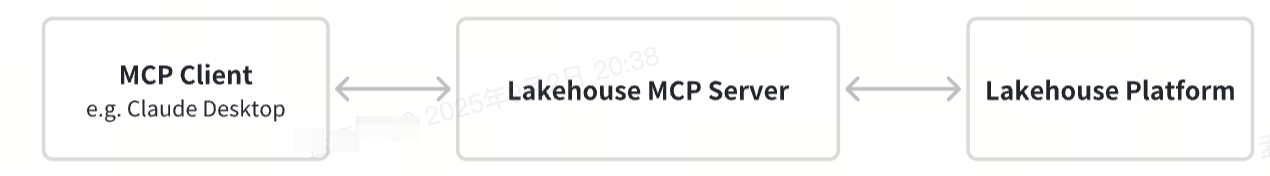

MCP (Model Context Protocol) Server is a standardized interface protocol that allows AI assistants (such as Claude) to interact securely and controllably with external systems and tools. Through the MCP Server, AI assistants can directly access and operate various data sources, execute complex data analysis tasks, and provide more intelligent and efficient services.

Lakehouse MCP Server is an MCP server designed specifically for the Lakehouse platform. It seamlessly integrates the powerful data lakehouse capabilities of the Singdata Lakehouse with AI assistants, enabling users to interact with the data lakehouse through natural language.

Core Features

• Protocol Support: Supports three transport protocols: HTTP (Streamable), SSE, and Stdio
• Standards Compliance: Fully adheres to the official MCP specification, providing a standard /mcp endpoint
• Broad Compatibility: Supports major platforms such as Claude Desktop, Dify, n8n, and Cursor

Deployment Environment Requirements

System Requirements

• Operating System: MacOS, Windows, Linux
• Docker: Version 20.10+
• Memory: Minimum 2GB, recommended 8GB
• CPU: Minimum 2 cores, recommended 4 cores
• Storage: Minimum 10GB available space

Quick Start

This example demonstrates deployment using the HTTP (Streamable) protocol (recommended), with both Claude Desktop (MCP client) and MCP Server running on the same local machine (localhost) (this architecture also supports distributed deployment, where the client, server, and Lakehouse platform can be located on different remote hosts).

Step 0: MCP Server Configuration Preparation

Docker environment preparation: Visit https://www.docker.com/products/docker-desktop/ to download Docker Desktop for Mac.

1. Verify Docker Desktop installation (MacOS environment), ensure Docker version is 20.10+

docker --version

2. Configure Docker Desktop:

• Allocate at least 4GB of memory to Docker
• Enable file sharing

Step 1: MCP Server Side: Pull the Latest Singdata MCP Server Image

docker pull czqiliang/mcp-clickzetta-server:latest

Step 2: MCP Server Side: Create Working Directory (if it does not exist)

• macOS:

  mkdir -p ~/.clickzetta/lakehouse_connection


• Windows PowerShell:

  New-Item -ItemType Directory -Path "$env:USERPROFILE\.clickzetta/lakehouse_connection" -Force


Under the above path, create a configuration file named connections.json and add the connection information for the Lakehouse instance. The configuration template is as follows (if connecting to two Lakehouse instances, separate them with commas):

{
  "connections": [
    {
      "is_default": true,
      "service": "cn-shanghai-alicloud.api.clickzetta.com",
      "username": "__your_name__",
      "password": "__your_password__",
      "instance": "__your_instanceid__",
      "workspace": "__your_workspacename__",
      "schema": "public",
      "vcluster": "default_ap",
      "description": "UAT environment for testing",
      "hints": {
        "sdk.job.timeout": 300,
        "query_tag": "mcp_uat"
      },
      "name": "Shanghai production env",
      "is_active": false,
      "last_test_time": "2025-06-30T19:55:51.839166",
      "last_test_result": "success"
    }
  ]
}

Parameter Descriptions:

Parameter Name	Description	Example Value
is_default	Whether it is the default connection configuration	true
service	Service endpoint address, refer to the documentation	Shanghai Alibaba Cloud: cn-shanghai-alicloud.api.clickzetta.com Beijing Tencent Cloud: ap-beijing-tencentcloud.api.clickzetta.com Beijing AWS: cn-north-1-aws.api.clickzetta.com Guangzhou Tencent Cloud: ap-guangzhou-tencentcloud.api.clickzetta.com Singapore Alibaba Cloud: ap-southeast-1-alicloud.api.singdata.com Singapore AWS: ap-southeast-1-aws.api.singdata.com
username	Username for authentication	"your_name"
password	Password for authentication	"your_password"
instance	Instance ID, identifies a specific Lakehouse instance	"your_instanceid"
workspace	Workspace name, used for data isolation and organization	"your_workspacename"
schema	Database schema name	"public"
vcluster	Virtual cluster name, used for compute resource management	"default_ap"
description	Description of the connection configuration	"UAT environment for testing"
hints	Performance optimization and identification configuration object	{...}
hints.sdk.job.timeout	SDK job timeout (seconds)	300
hints.query_tag	Query tag, used for query tracking and identification	"mcp_uat"
name	Name identifier for the connection configuration	"Shanghai production env"
is_active	Whether the connection is in an active state	false
last_test_time	Timestamp of the last connection test (ISO format)	"2025-06-30T19:55:51.839166"
last_test_result	Result status of the last connection test	"success"

Step 3: MCP Server Side: Start the MCP Server Image

Create a docker-compose.yml file and copy the content into it (see the appendix for the file content).

Open a terminal or command line in the directory containing this file and execute the following command.

docker compose up -d

Expected output:

bash-3.2$ docker compose up -d
[+] Running 4/4
 ✔ Network mcp_docker_clickzetta-net  Created       0.0s
   ✔ Container clickzetta-sse           Started       0.2s
   ✔ Container clickzetta-http          Started       0.2s
   ✔ Container clickzetta-webui         Started       0.2s

Verify the status using the docker compose ps --format "table {{.Name}}\t{{.Service}}\t{{.Status}}" command. The expected output is as follows (ignore WARNING messages):

bash-3.2$ docker compose ps --format "table {{.Name}}\t{{.Service}}\t{{.Status}}"

NAME               SERVICE            STATUS
clickzetta-http    clickzetta-http    Up 5 hours (unhealthy)
clickzetta-sse     clickzetta-sse     Up 5 hours (unhealthy)
clickzetta-webui   clickzetta-webui   Up 5 hours (unhealthy)

Step 4: Configure Claude Desktop

The MCP client tool chosen for this example is Claude Desktop, with the host located on the same machine as the MCP Server.

Locate and open the Claude Desktop configuration file:

macOS Steps:

• Open Finder
• Press Cmd+Shift+G
• Paste the path: ~/Library/Application Support/Claude
• Double-click to open claude_desktop_config.json (with a text editor)

Windows Steps:

• Press Win+R to open the Run dialog
• Type %APPDATA%\Claude and press Enter
• Right-click claude_desktop_config.json
• Select "Edit" or "Open with Notepad"

2. Copy the following content into the configuration file (replace the existing content or add it to mcpServers):

Enter the MCP Server address: if the server and client are running on the same machine, use localhost; otherwise, enter the server's IP address.

{
  "mcpServers": {
    "clickzetta-http": {
      "command": "npx",
      "args": [
        "-y", "mcp-remote",
        "http://<YOUR_SERVER_IP>:8002/mcp",
        "--allow-http",
        "--transport", "http"
      ]
    }
  }
}

Configuration Complete!

Additionally: Claude Desktop supports connecting to the backend MCP Server through multiple methods to accommodate different deployment environments and performance requirements. The example above introduced the HTTP (Streamable) protocol connection method. If you want to use the SSE or STDIO protocol connections, configuration is also simple:

SSE Connection Method (Remote Service)

SSE (Server-Sent Events) is a long-connection technology based on HTTP that allows the server to push messages unidirectionally to the client. Compared to traditional polling, SSE enables real-time communication with lower latency.

• Applicable Scenario: Scenarios that require receiving real-time data streams or update notifications from the server.
• Docker Server Configuration Reference: This method corresponds to starting the clickzetta-sse service in the container, which provides services on port 8003.
• Configuration Example: In Claude Desktop's claude_desktop_config.json configuration file, update the following information to connect to the remote SSE endpoint.

{
  "mcpServers": {
    "clickzetta-remote-sse": {
      "command": "npx",
      "args": [
        "-y", "mcp-remote",
        "http://localhost:8003/sse",
        "--allow-http",
        "--transport", "sse"
      ]
    }
  }
}

Notes:

• Replace <YOUR_SERVER_IP> with the actual IP address or domain name of the MCP Server.
• The target port is 8003, and the endpoint path is /sse.
• The --transport sse parameter specifies the use of the SSE communication protocol.

---

STDIO Connection Method (Local Process)

This method is mainly used for local development and debugging. Claude Desktop will launch the MCP Server as a subprocess directly on the local machine and communicate through standard input/output (STDIO). This method has the lowest latency but is not suitable for remote connections.

• Applicable Scenario: Local development, single-machine deployment.
• Docker Server Configuration Reference: This method corresponds to starting the clickzetta-stdio service in the container. The container image will automatically start and stop as Claude Desktop opens and closes.
• Configuration Example: In Claude Desktop's claude_desktop_config.json configuration file, update the following information to directly specify the command to start the local Server.

Note:

1. In the configuration file, the path after -v in USERNAME should be modified according to the actual system path.
2. Use docker compose down to shut down the created containers, because in this mode, Claude Desktop will automatically start and stop the container image as it opens and closes.

{
  "mcpServers": {
    "clickzetta-stdio": {
      "command": "docker",
      "args": [
        "run", "-i", "--rm",
        "--stop-timeout", "60",
        "-p", "8502:8501",
        "-v", "/Users/derekmeng/.clickzetta:/app/.clickzetta",
        "czqiliang/mcp-clickzetta-server:latest"
      ]
    }
  }
}

Notes:

• command and args directly define how to start the MCP Server locally.
• No need to specify an IP address and port.
• The --transport stdio parameter specifies the use of the STDIO communication protocol.

Getting Started

Deployment Verification

1. Open Claude Desktop and send the following command in the input box:

List all available MCP tools for the Clickzetta Lakehouse

If the connection is successful, you will see a list containing 50+ tools (note: as versions update, the specific number of tools may vary).

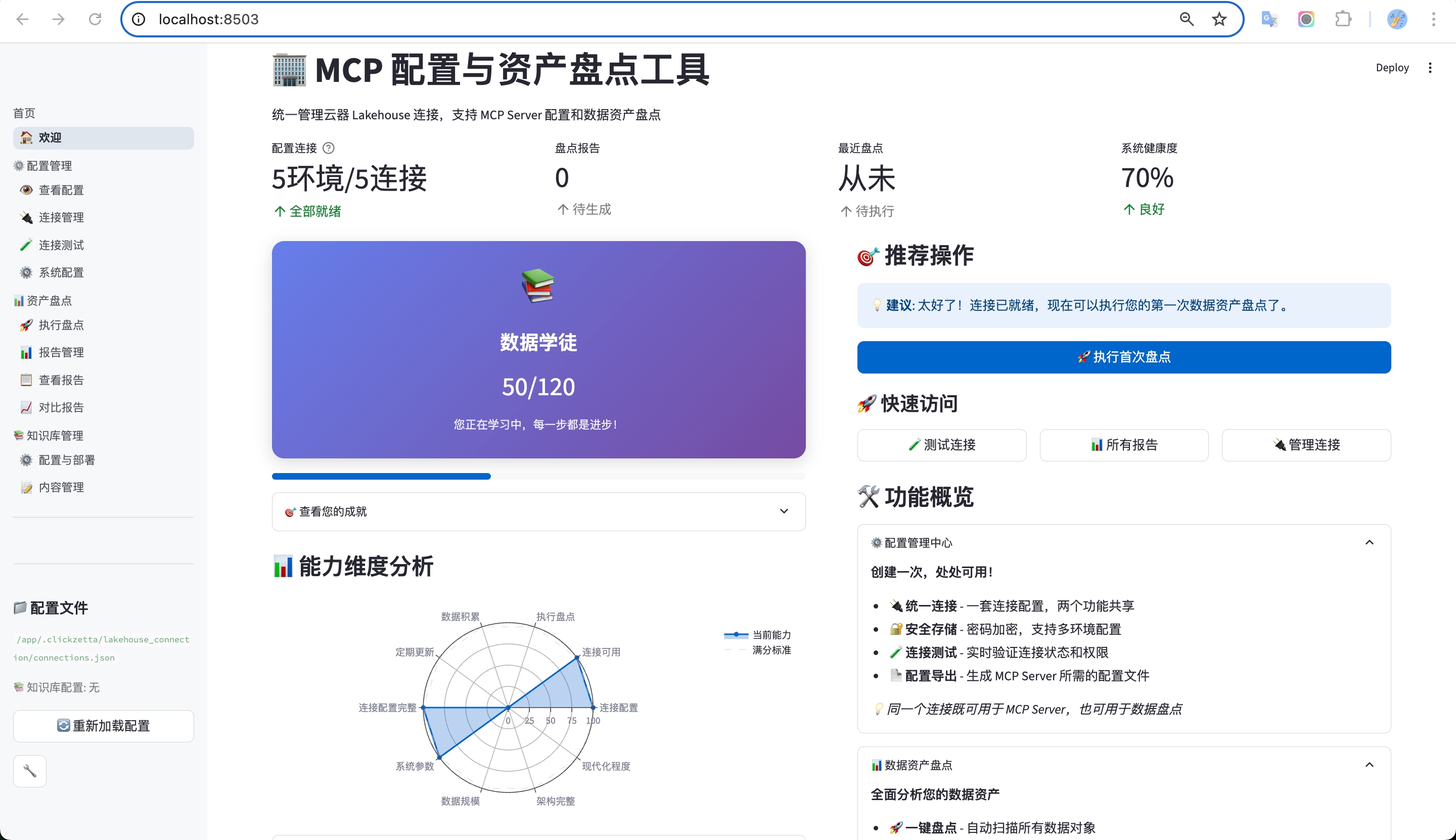

2. Verify the WebUI Interface

• Access the following address in your browser: http://localhost:8503, and you should see the following page:

If both steps above complete successfully, congratulations, your application has been successfully installed!

Step 2: Configure Your First Data Source (Lakehouse)

Next, let's configure a Lakehouse connection so that Claude can access your data.

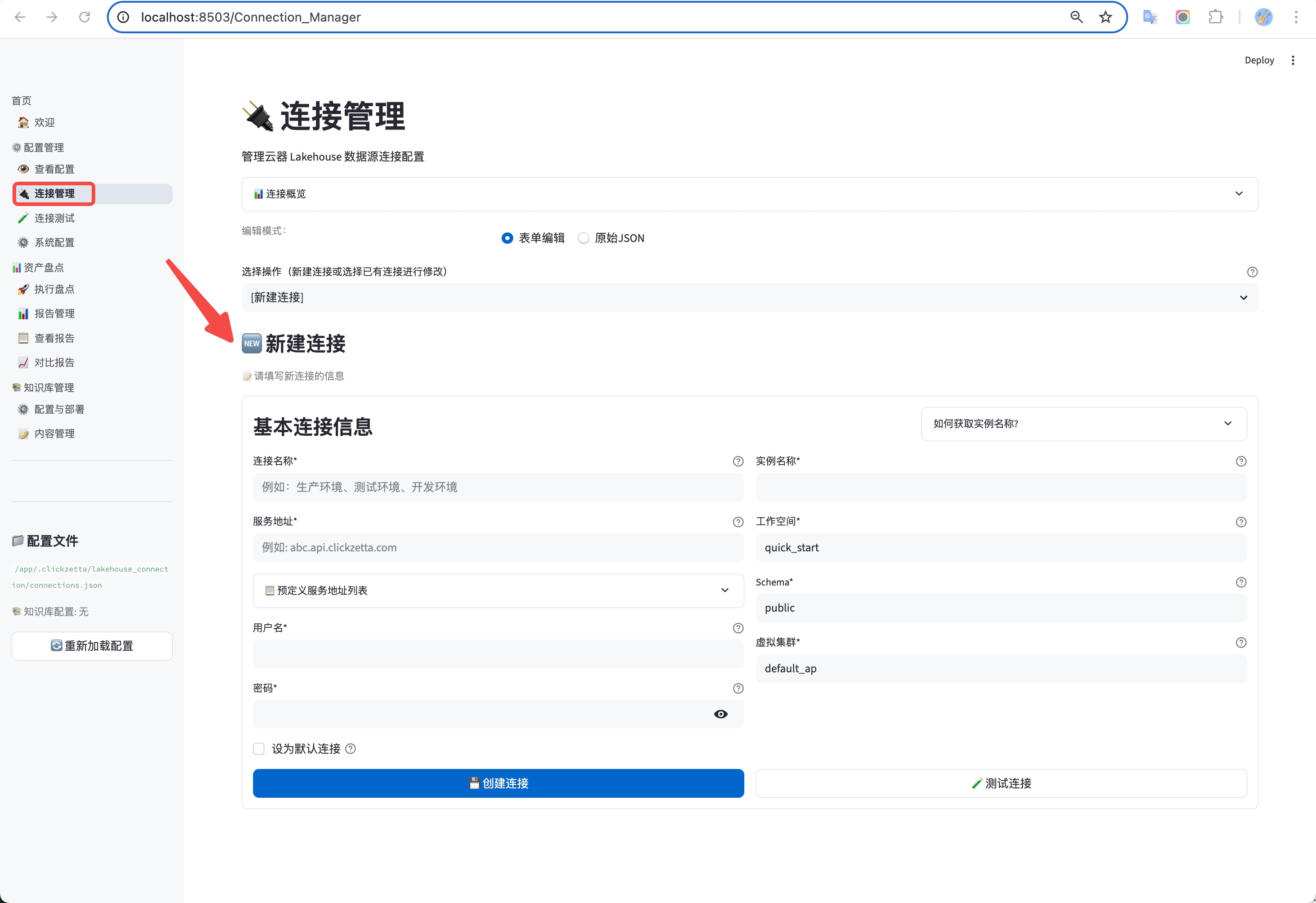

1. Open Connection Manager

   Access the WebUI at http://localhost:8503, then select Connection Management from the left menu.

2. Add and Fill in Connection Information

   Click the Add New Connection button and accurately fill in your Lakehouse connection information (such as host, port, credentials, etc.) according to the prompts.

---

Test and Save

1. After filling in the information, click the Test Connection button to ensure all configuration is correct and the network is accessible.
2. After the test passes, click Save to complete the configuration.

Step 3: Start Your First Query

Now everything is ready! You can start interacting with your data. Try asking in Claude Desktop:

Advanced Configuration: Configure the Singdata Product Documentation Knowledge Base

This step integrates the Singdata Lakehouse product knowledge base table, building an intelligent Q&A knowledge base. After configuration, you will be able to quickly obtain official guidance and answers about Lakehouse operations through natural language questions in the MCP Client (such as Claude Desktop).

The core of this functionality leverages Embedding Services and Vector Search technologies to transform unstructured documents into a knowledge base that can be understood and retrieved by machines.

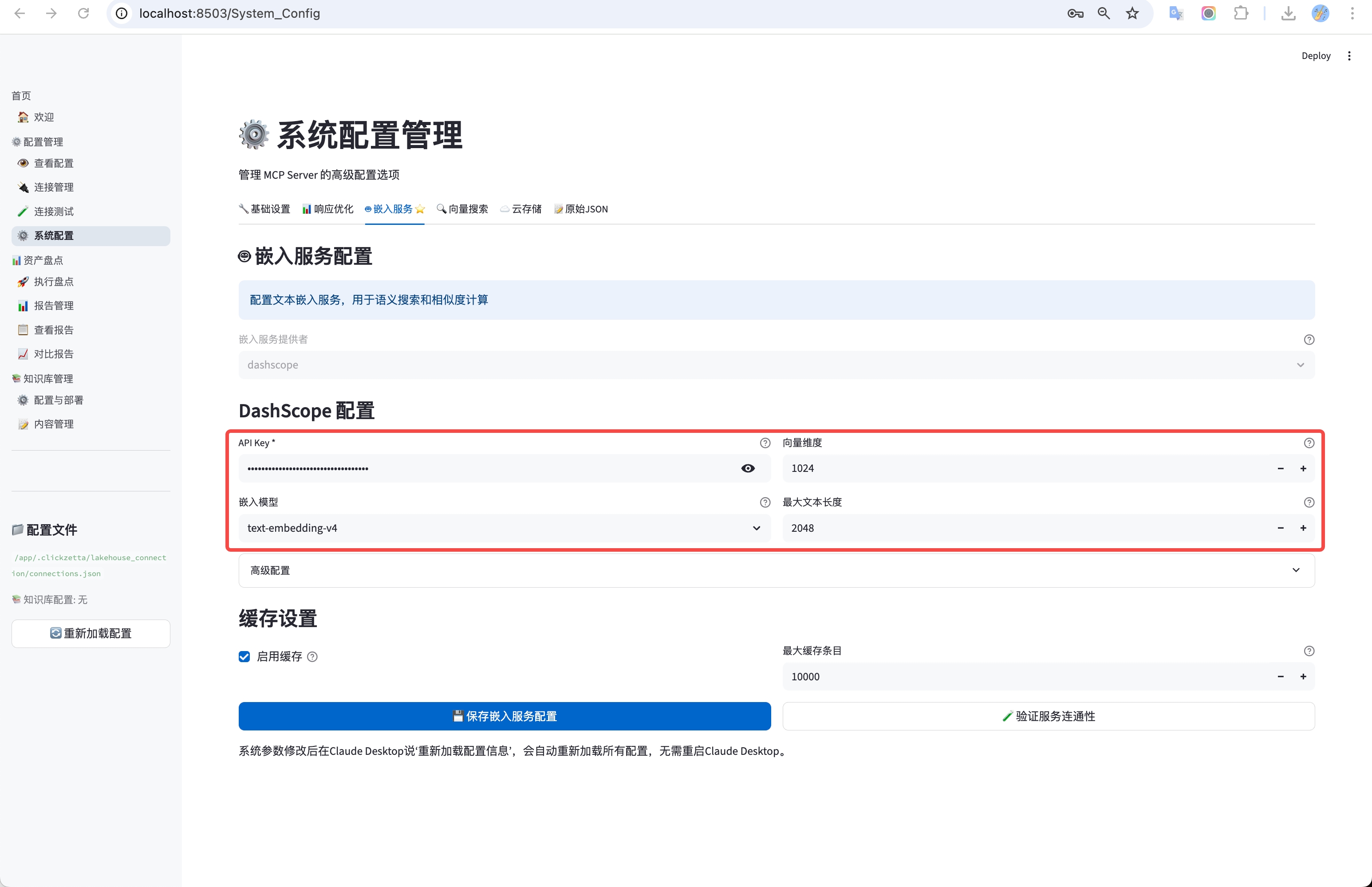

Step 1: Configure the Embedding Service

The purpose of this step is to tell the MCP system how to convert user "questions" into vectors for matching within the knowledge base.

1. In the MCP Server management interface, navigate to System Configuration from the left navigation bar.

2. In the main configuration area, select the Embedding Service tab.

3. Locate and fill in the DashScope Configuration (default) section:

   • API Key: Paste your Alibaba Cloud Bailian platform API key. This is the credential for calling the model; please keep it secure.
   • Vector Dimension: Enter the vector dimension output by the embedding model you selected. This value must be exactly the same as the dimension used when vectorizing the knowledge base documents. For example, the dimension of the text-embedding-v4 model shown in the screenshot is 1024.
   • Embedding Model: Select or enter the name of the model used to convert text into vectors, such as text-embedding-v4.
   • Max Text Length: Set the maximum number of text units (Tokens) the model can process at one time. If the question is too long, the excess will be ignored.

4. Click the Save Embedding Service Configuration button.

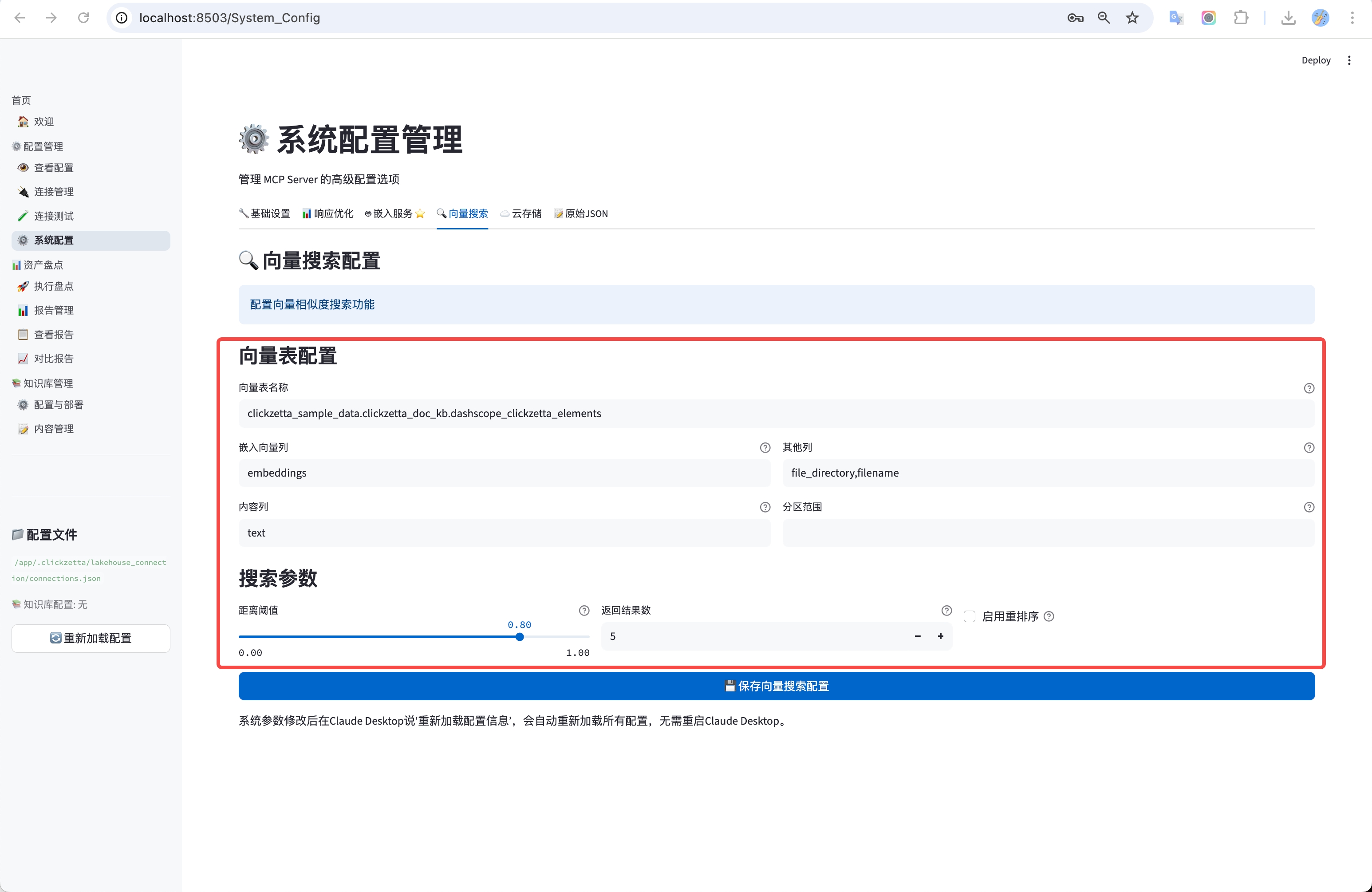

Step 2: Configure Vector Search

The purpose of this step is to tell the MCP system where and how to search the already stored document knowledge base.

1. On the System Configuration page, switch to the Vector Search tab.

2. Fill in the Vector Table Configuration section:

   • Vector Table Name: Accurately enter the full table name where the document vectors are stored. The format is typically database_name.schema_name.table_name, for example clickzetta_sample_data.clickzetta_doc.kb_dashscope_clickzetta_elements.
   • Embedding Column: Enter the column name in that table used to store the text vectors, such as embeddings.
   • Content Column: Enter the column name in that table used to store the original text content, such as text. When the system finds relevant answers, the content here will serve as the primary reference.
   • Other Columns: Optional. Fill in the metadata columns you wish to retrieve together, such as file_directory, filename, which helps users trace the original source of information.

3. Configure Search Parameters: Keep the defaults. If you want to make changes, refer to the instructions below.

   • Distance Threshold: Set a strictness level for similarity matching. The system calculates the "distance" between the question vector and the document vectors; only documents with a distance less than this value are considered relevant. Smaller values mean stricter matching requirements. It is generally recommended to start with 0.80.
   • Number of Results to Return: Defines the number of the most relevant documents retrieved from the database in a single query. For example, setting it to 5 means retrieving the 5 most relevant document fragments each time.
   • Enable Reranking: When checked, the system will perform a secondary intelligent ranking of the initially retrieved results to increase the probability that the most accurate answer appears at the top.

4. Click the Save Vector Search Configuration button.

Other Typical Use Cases

Please refer to the public account article: How MCP Server Empowers Lakehouse to Achieve 6 AI-Driven Data Application Scenarios

We look forward to exploring the new era of AI-driven data analysis with you!

Appendix

Contents of the docker-compose.yml file:

version: '3.8'
services:
  # HTTP protocol service
  clickzetta-http:
    image: czqiliang/mcp-clickzetta-server:latest
    container_name: clickzetta-http
    restart: unless-stopped
    ports:
      - "8002:8002"  # HTTP protocol port
    volumes:
      - ~/.clickzetta:/app/.clickzetta  # Config file mount
    # Completely bypass uv, directly use the virtual environment Python
    entrypoint: []
    command: ["/app/.venv/bin/python", "-m", "mcp_clickzetta_server","--transport","http", "--host", "0.0.0.0", "--port", "8002"]
    environment:
      - LOG_LEVEL=INFO
      - PYTHONUNBUFFERED=1
      - TZ=Asia/Shanghai  # Timezone setting
    deploy:
      resources:
        limits:
          memory: 8G
          cpus: '4'
        reservations:
          memory: 512M
          cpus: '0.5'
    healthcheck:
      test: ["CMD", "curl", "-s", "http://localhost:8002/mcp"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 60s  # Increased to 60s, providing HTTP warm-up 5s + FastMCP startup time
    logging:
      driver: "json-file"
      options:
        max-size: "100m"
        max-file: "3"
    networks:
      - clickzetta-net
  # SSE protocol service
  clickzetta-sse:
    image: czqiliang/mcp-clickzetta-server:latest
    container_name: clickzetta-sse
    restart: unless-stopped
    ports:
      - "8003:8003"  # SSE protocol port
    volumes:
      - ~/.clickzetta:/app/.clickzetta  # Config file mount
    # Completely bypass uv, directly use the virtual environment Python
    entrypoint: []
    command: ["/app/.venv/bin/python", "-m", "mcp_clickzetta_server","--transport","sse", "--host", "0.0.0.0", "--port", "8003"]
    environment:
      - LOG_LEVEL=INFO
      - PYTHONUNBUFFERED=1
      - TZ=Asia/Shanghai  # Timezone setting
    deploy:
      resources:
        limits:
          memory: 8G
          cpus: '4'
        reservations:
          memory: 512M
          cpus: '0.5'
    healthcheck:
      test: ["CMD", "curl", "-s", "http://localhost:8003/sse"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 120s  # Increased to 120s, providing more SSE startup time
    logging:
      driver: "json-file"
      options:
        max-size: "100m"
        max-file: "3"
    networks:
      - clickzetta-net

  # WebUI service
  clickzetta-webui:
    image: czqiliang/mcp-clickzetta-server:latest
    container_name: clickzetta-webui
    restart: unless-stopped
    ports:
      - "8503:8501"  # WebUI port
    volumes:
      - ~/.clickzetta:/app/.clickzetta  # Config file mount
    # Directly start Streamlit WebUI, bypassing all wrapper scripts
    entrypoint: []
    command: ["/bin/bash", "-c", "cd /app/streamlit_webui && /app/.venv/bin/python -m streamlit run app.py --server.port=8501 --server.address=0.0.0.0 --server.headless=true --browser.gatherUsageStats=false"]
    environment:
      - LOG_LEVEL=INFO
      - PYTHONUNBUFFERED=1
      - TZ=Asia/Shanghai  # Timezone setting
      - PYTHONPATH=/app/src:/app/streamlit_webui/src
    working_dir: /app/streamlit_webui
    deploy:
      resources:
        limits:
          memory: 8G
          cpus: '4'
        reservations:
          memory: 512M
          cpus: '0.5'
    healthcheck:
      test: ["CMD", "curl", "-s", "http://localhost:8501"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 40s
    logging:
      driver: "json-file"
      options:
        max-size: "100m"
        max-file: "3"
    networks:
      - clickzetta-net

networks:
  clickzetta-net:
    driver: bridge
